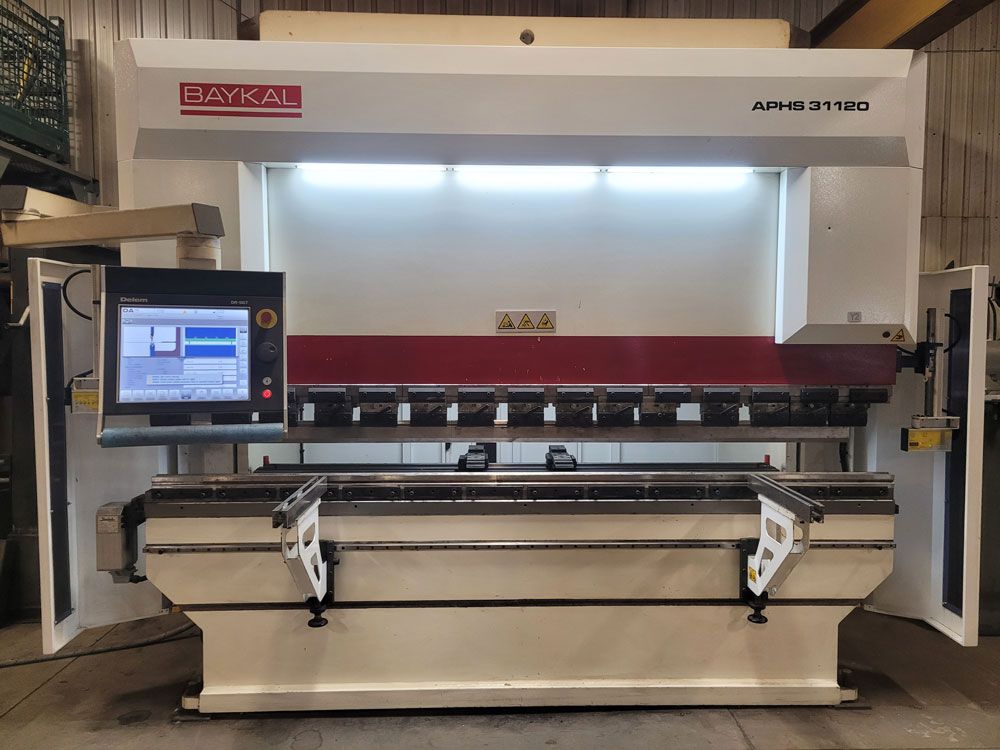

Baykal APHS 31120 132 ton

Press force 132 ton
Bending length 122 in
Distance between housings 100 in
Stroke length 10.2 in
Open daylight 20.8 in
Advance speed 378 IPM
Pressing speed 23 IPM
Return speed 307 IPM
Backgauge travel 29.5 in + 9.8 in
Table width 2.4 in
Throat depth 16 in
Floor to top of bed 35 in
Motor power 20 HP
Machine weight 19,000 lb
Machine dimensions 140 × 90 × 112 in

Baykal CNC Y1, Y2, X, R, Crowning (5 Axis)
Delem 66T Control
Laser beam guards (Fiessler Akas)
Rear and side guarding (safety interlocked)
2 sliding front support arms
Lower 4-way die
Full-length upper European tooling
