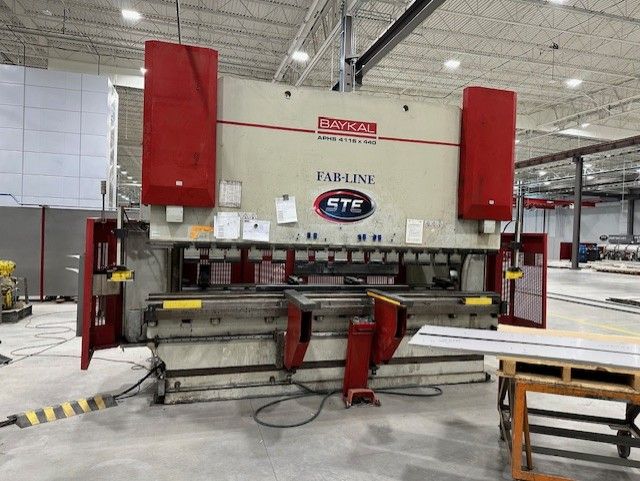

Baykal APHS 4116×440 480 tons

Press force: 480 tons
Overall bending length: 13′ 4″
Distance between housings: 11′ 7″
Stroke of ram: 12.6″
Open daylight: 23.2″
Advance speed: 189 IPM
Pressing speed: 23 IPM
Return speed: 165 IPM
Maximum travel of back gauge: 29.5″ + 9.8″ (second stop)
Table width: 15″
Distance floor to top of bed: 43.5″
Throat depth: 19.7″
Motor: 40 HP
Machine weight: 60,000 lbs
Machine dimensions: 200″ × 90″ × 138″
5-axis CNC (Y1, Y2, X, R, crowning)
Delem 69W control (mobile stand)
Laser safe laser beam guards
Rear and side guarding (safety interlocked)
2 front support arms (sliding)
4 backgauge fingers
