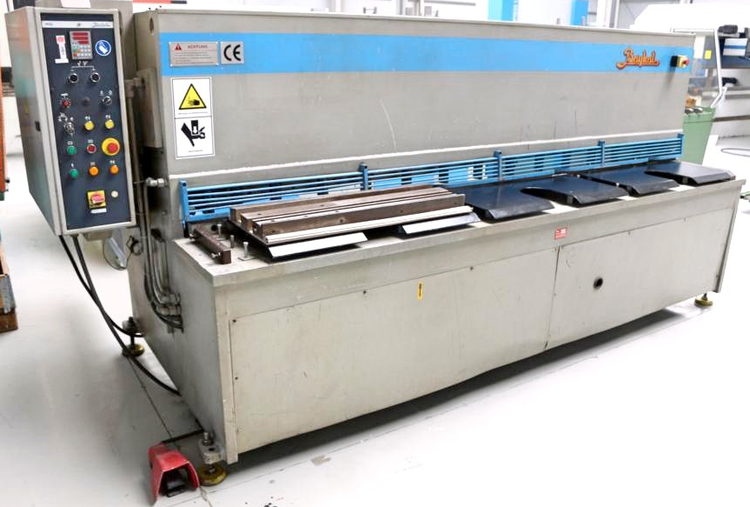

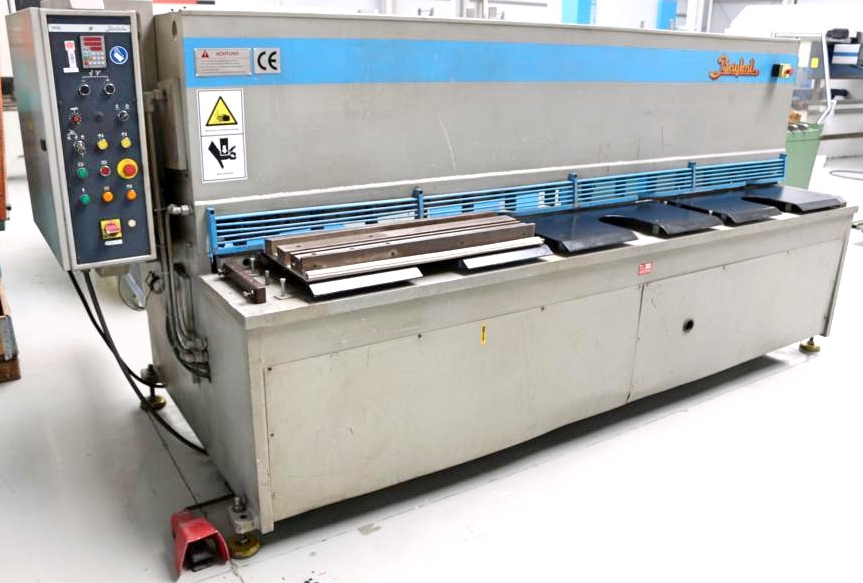

Baykal HGL 3100 x 8

Control type: NC
Control: ELGO P9521
Sheet width: 3060 mm
Cutting thickness (steel): 8.0 mm
Cutting thickness (stainless steel): 6.0 mm
Distance between columns: 3100 mm
Hold-downs: 16 units
Strokes per minute: max. 10 - 15
Cutting angle: 1.6°
Backgauge adjustment range: 6.0 - 750 mm
Oil volume: 160 liters
Total power requirement: 18.5 kW
Machine weight: 6300 kg
Machine dimensions (L x W x H): 3900 x 2300 x 1630 mm
Electro-hydraulic swing beam shear
ELGO digital display
Electric backgauge
Backgauge travel: 750 mm
Backgauge ball screw drive
Backgauge travel speed: 100 mm/s
Side stop with T-slot, flip-stop, and millimeter scale
Two front support arms
Electric cutting length limiter
Manual cutting gap adjustment
Centrally operated gap adjustment
Front support plates
Front finger guard
Inching operation via left-side control panel
Rear safety grille
Operating instructions (PDF)
