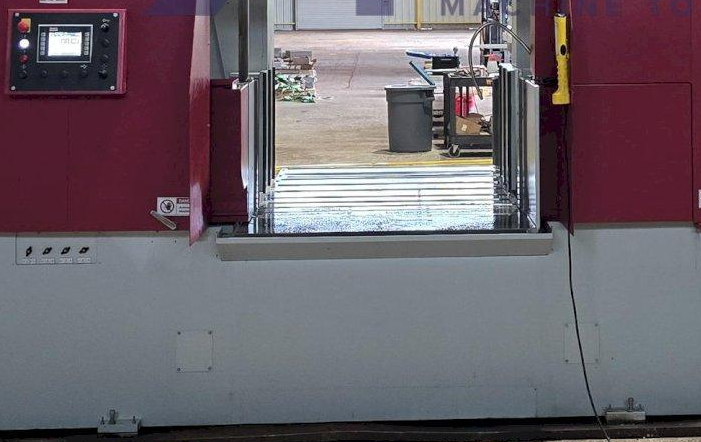

Behringer HBE1060A Band Saw Automatic

Cutting Capacity:
Round cutting capacity: 41.73″ / 1060 mm
Flat cutting capacity (W x H): 41.73 x 41.73″ / 1060 x 1060 mm
Minimum round: 2.36″ / 60 mm
Minimum flat (W x H): 0.7874 x 2.36″ / 20 x 60 mm

Spindle / Drive:
Saw drive: 18.5 kW, frequency controlled
Cutting speed: 10–180 m/min
Total connection power: 23 kW

Control & Features:
Type: Automatic
Servo-downfeed system with ball screw
BEHRINGER cutting pressure control
Material feed: Ball screw drive
Material clamping: Hydraulic
Saw blade tensioning: Hydraulic, electrically monitored
Saw band cleaning: Electrically driven chip brush, quick-change device
Auto-feed control with blade deflection monitor
BT65 Touch PLC with 5.7″ QVGA resistive touchscreen
Job database and editable material database
Joystick operation for axis motion
Programming for single cuts and 99 sets
Fault/alarm history and service page
Full-covering of machine for operator safety

Blade / Tooling:
Blade thickness: 0.063 in
Blade width: 2.625 in
Blade length: 414 in
Saw band dimensions: 80 x 1.6 mm
Hydraulically tensioned carbide guides
Automatic adjustment of movable band guide

Feed / Axis Travel:
Material feeding length per stroke: 19.685″ / 500 mm
Maximum feed length: 177″ / 4500 mm
Minimal cut-off length: 0.3937″ / 10 mm (automatic)
Minimum rest piece: 2.16″ / 55
