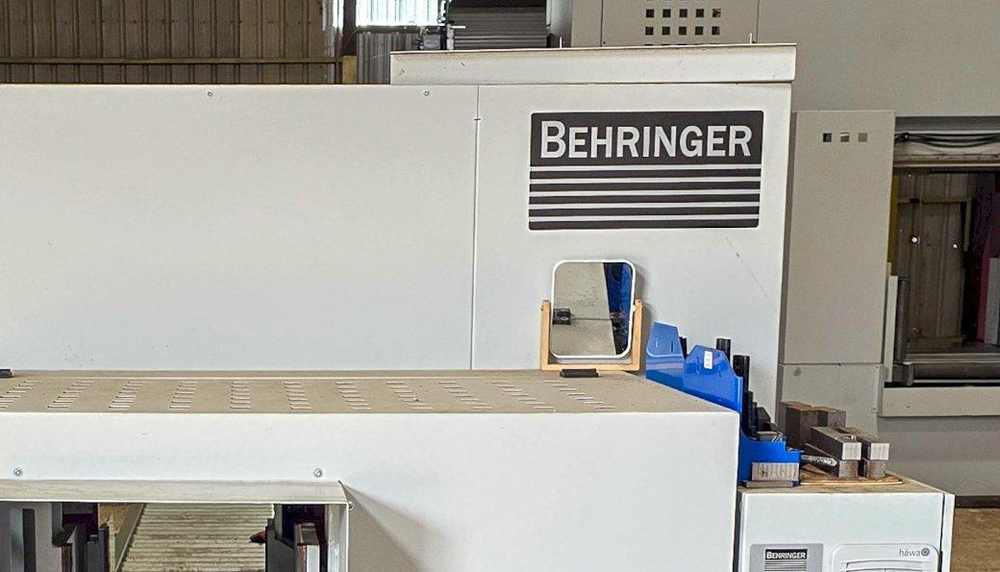

Behringer HBE261A Band Saw SemiAutomatic

Cutting Capacity:
Round cutting capacity: 10.23″ / 260 mm
Flat cutting capacity (W x H): 11.81 x 10.23″ / 300 x 260 mm
Minimum round: 0.393″ / 10 mm
Minimum flat (W x H): 0.314 x 0.393″ / 8 x 10 mm

Blade / Tooling:
Saw blade dimensions: 4440 x 34 x 1.1 mm / 14′7″ x 1-1/4″ x 0.042″
Hydraulic horizontal material clamping, full-stroke
Hardened clamping jaws on both sides of saw blade
Filler plates between rollers, detachable
Saw band cleaning: electrically driven chip brush with quick-change device
Hydraulically tensioned carbide guides
Automatic adjustment of movable band guide

Spindle / Drive:
Saw drive: 2.6 kW, frequency controlled
Cutting speed: 15–110 m/min
Total connection power: 5.8 kW

Control & Features:
Dual-column horizontal bandsaw, automatic
BEHRINGER cutting pressure control system
Hydraulic downfeed with ball screw drive
Electric ball screw-driven incremental material feed gripper
BEHRINGER BT65 touch PLC, 5.7″ QVGA resistive touchscreen
Joystick operation for axis motions
Programming for single cuts and storing of 99 sets
Job list for linking sets
Fault/alarm history and service page
Full-covering of machine for operator protection
Automatic height adjustment of saw frame according to material
Automatic recognition of leading edge of material
Blade separation/kerf channel widening system

Feed / Axis Travel:
Material feeding length per stroke: 23.6″ / 640 mm
Maximum feed length: 189″ / 5760 mm
Minimal cut-off length: 0.393″ / 10 mm (automatic)
Minimum rest piece: 2.75″ / 70 mm (automatic), 0.393″ / 10 mm (manual)

Machine Size / Weight / Additional Equipment:
Dimensions (L x W x H): 72.83 x 90.55 x 74.01″
Weight: 4,078.5 lb / 1,850 kg
Material support height: 31.496″ / 800 mm
Coolant pump flow rate: 40 L/min at 2 m delivery height
Coolant container capacity: 70 L
Electrically driven spiral swarf conveyor, ejection height 415 mm, speed 1.2 m/min
