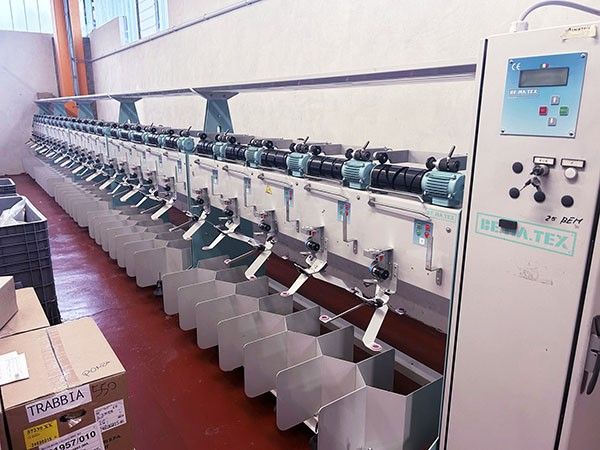

Bematex Electronic assembly winder SA-25

- single side
- n.25 spindles
- grooved drum 2,5 turns parallel, 90 mm diam.
- individual AC coaxial motor per spindle
- yarn traverse: 8 inch (200 mm)
- tube length 220 mm
- conicity cylindrical tube diam. 43 mm
- maximum package diameter: 290 mm
- maximum diameter of the feeding package: 270 mm
- gas controlled mandrel pressure to accurately control the package density with adapters with spring for axial compensation
- machine programmable control unit with digital display showing production and machine operational data
- winding speed from 250 to 1200 m/min.
- anti patterning system programmable by the control panel
- internal feed creel, with three universal bobbin holders
- n.3 optical yarn detection sensor
- self-cleaning motorized yarn tensioner
- high speed yarn cutter
- start / Stop button
- overhead package holder
- high precision electronic meter counter with setting up to 6 different groups simultaneously
- power installed 0,12 Kw per spindle
- supply voltage: 400 V three-phase – 50/60 Hz
