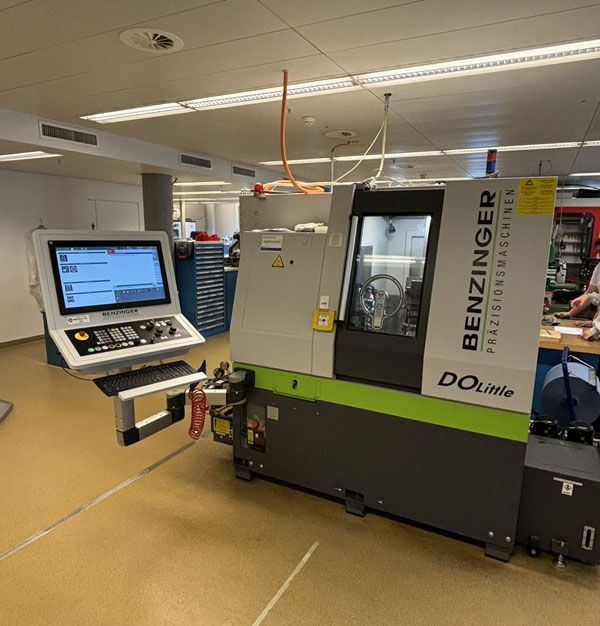

Benzinger Control: Siemens 840 DSL 15000 rpm DOLittle B3/16 3 Axis

Max Turning Diameter: 16 mm
Max Workpiece Length: 145 mm
Axis C Resolution: 0.001 deg
Main Spindle Bore: 16 mm
Main Spindle Collet Type: W20
Main Spindle Speed: 15000 rpm
Driven Tool Spindle Speed: 6000 rpm
Counter Spindle Axis C Resolution: 0.001 deg
Counter Spindle Bore: 16 mm
Counter Spindle Collet Type: W20
Counter Spindle Speed: 15000 rpm
Swivelling Milling Head Number of Spindles: 6
Swivelling Milling Head Speed: 18000 rpm
Rapid Traverse: 30 m/min
Cut Off Slide: NC controlled
Tool Stations Main Spindle: 6
Driven Tool Stations Main Spindle: 6
Tool Stations Counter Spindle: 6
Driven Tool Stations Counter Spindle: 6
Power Supply: 400 V
Machine Dimensions (W×D×H): 2200 × 1500 × 2000 mm
Machine Weight: 2600 kg
Tool Presetter Device
Workpiece Pick-up Attachment
3D Measuring Tracer Blum TC 76 N
Fire Extinguishing System
Coolant Installation
