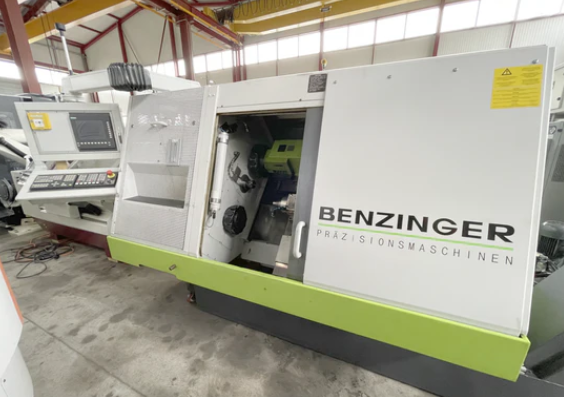

Benzinger Siemens 840D 6000 rpm (stepless up to 8000 rpm) TNI-B6 6 Axis

Control: Siemens 840D
X1-Axis Travel: 180 mm
X2-Axis Travel: 195 mm
Z1-Axis Travel: 340 mm
Z2-Axis Travel: 440 mm
Y-Axis Travel: 70 mm (-30 / +40 mm)
C-Axis: included
Spindle Hole: 32 mm

Number of Axes: 7
Number of Spindles: 2
Number of Turrets: 2
Turret 1 Positions: 16
Turret 2 Positions: 12
Driven Tools Power: 6 kW
Spindle Speed: up to 6000 rpm (stepless up to 8000 rpm)
Back Spindle Speed: up to 8000 rpm
Back Spindle Power: 12 kW
Spindle Motor: 7–9 kW
Spindle Nose: DIN 55026 A4
Tool Interface: VDI 25 DIN 69880

Air Pressure: 6 bar
Voltage: 400 V / 50 Hz / 3 Phase
Total Power: 25 kVA / 20 kW
Machine Weight: 4100 kg
Machine Dimensions: 2350 x 1770 x 1925 mm

Coolant Tank: 160 L
Bar Feeder: LNS EXPRESS 332 S2 (max bar length 3000 mm)
Chip Conveyor: included
Foot Pedal: included
Lamp: included
Unloading Device: included
Control Cabinet Air Conditioning: included
Fire Extinguishing System (without bottle): included
Status Light: included
