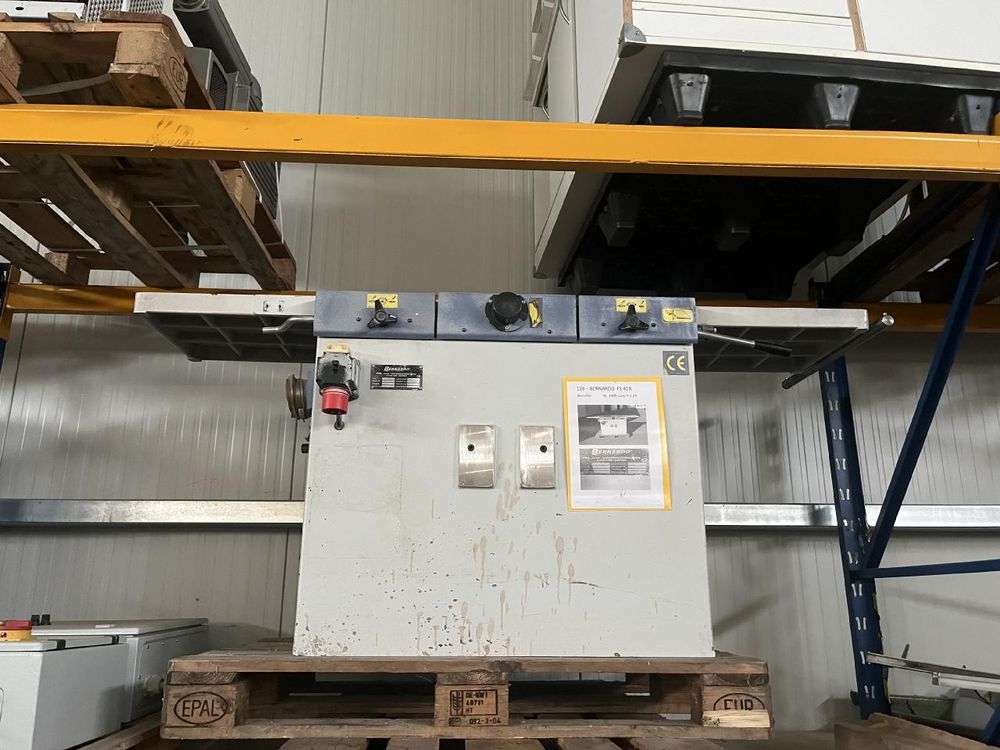

Bernardo FS 41 N

Used machine
Electrical equipment 400V/50Hz with CE safety circuit and motor brake
The planing tools fold to the rear, allowing for space-saving installation
Integrated, foldable chip ejection hood, connection diameter 120 mm
The feed table is adjusted using a parallelogram
Both planing tables with noise-insulating planing table lips
Precision-mounted cutter block with reversible knives
Thicknessing table with central column guide and support
Adjustable spiral-toothed feed roller for optimal planing results

Technical specifications:
Planing width 410 mm
Table length 1800 mm
Table height 850 mm
Cutter block speed 4500 rpm
4-knife block
Cutter block diameter 100 mm
Planing stop pivots 90-45°
Max. chip removal 5 mm
Motor power: 4 kW

Thickness:
Thicknessing table length: 700 mm
Planing width: 405 mm
Min./max. throughput: 3 - 225 mm
Max. chip removal: 5 mm
Feed speed: 8 m/min
Net weight: approx. 420 kg
Space requirement: 1800 x 850 mm
