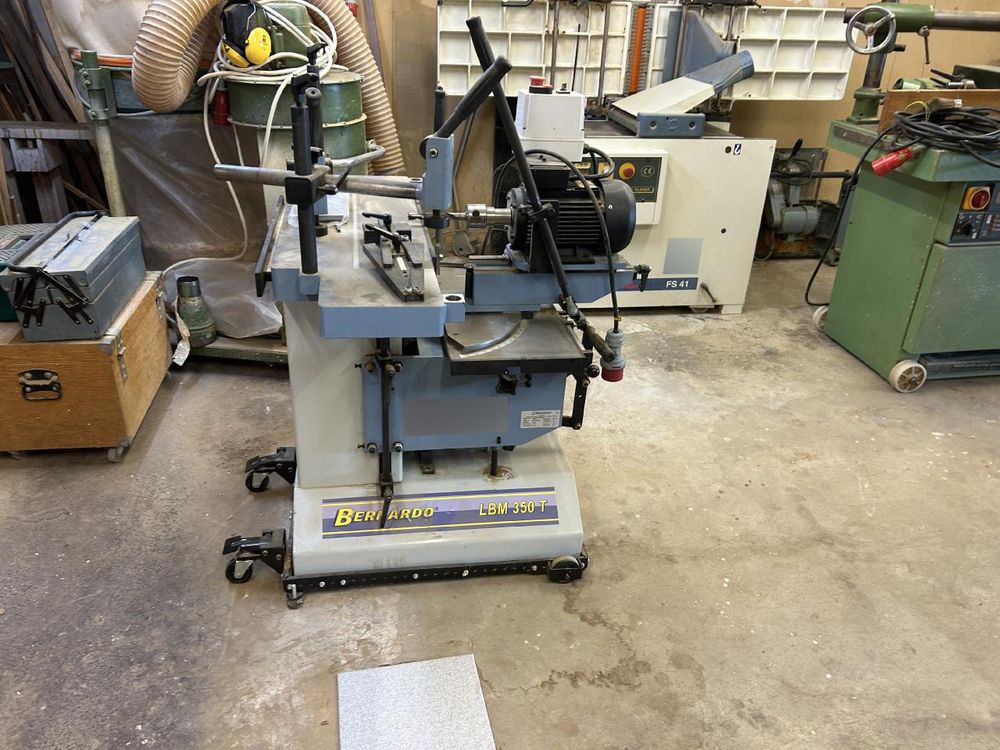

Bernardo LBM 350 T

Long hole drilling machine
Used machine
Drilling depth adjustment via maintenance-free linear guide
Efficient and economical operation thanks to the quick-lift system, eliminating laborious cranking
Smooth-running and continuously variable drilling unit
Height adjustment with fine adjustment and gas cylinder for weight compensation
Cross-travel and height adjustment with scales and adjustable stops
Vibration-free operation thanks to robust steel construction
Drilling depth adjustable via scale and stop
Drill head height adjustment can be fully used for vertical slotting
Large-sized cast iron table with ground surface

Motor power: 1.5 / 1.9 kW (2.0 / 2.6 HP)
Voltage: 400 V
Speed: 1,400 / 2,850 rpm
Westcott drill chuck: 0-20 mm
Maximum drilling depth: 220 mm
Drilling width: 340 mm
Height adjustment: 145 mm
Drill head tiltable: -60° to +60°
Drilling table size: 595 × 315 mm
Table extensions: 2 × 200 × 220 mm
Drilling table height: 830 mm
Dimensions: 1,200 × 1,050 × 1,300 mm (W × D × H)
Weight: approx. 240 kg
