Biesse FTT800, FHT, ADVANTAGE

Components :

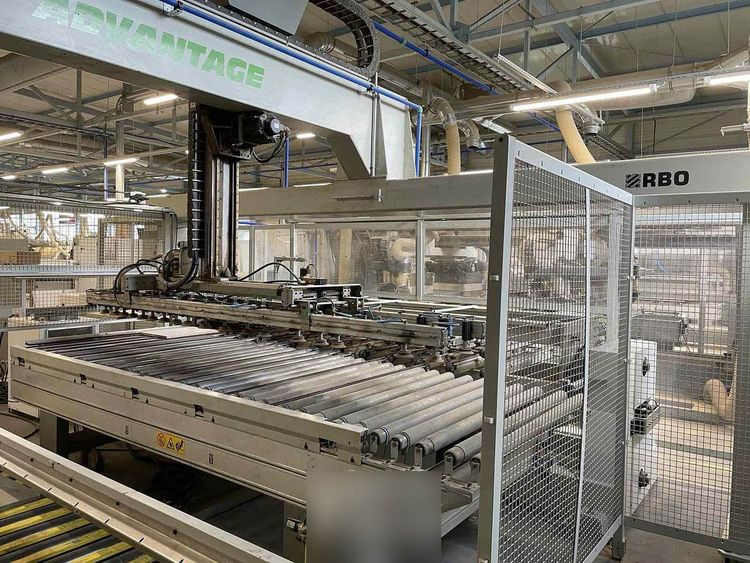

ADVANTAGE C transverse loader: automatic
ROTATING DEVICE (flipper): available
BIESSE FTT: with 4 heads, drilling and milling, automatic tool change
BIESSE FHT: 2 WORKING UNITS horizontal drilling and dowel insertion
WANDRES: brush cleaning from top
ADVANTAGE SC transverse unloader: automatic

Plate dimensions:
Plate length: 240 - 3,200 mm
Single panel width: 140 - 1,550 mm
Plate width: 140 - 800 mm
Plate thickness: 12 - 60 mm
Drilling units
Drill heads FTT 800:
2 machining centres with 4 boring units - 5 working tables
Vertical spindles (X-direction): 14 independent per head
Vertical spindles (Y-direction): 18 independent per head
Horizontal spindles (X-direction): 3 independent, with double output
Horizontal spindles (Y-direction): 3 independent, with double output
Tool change system
Revolver cartridges: 2
Positions per cassette: 56
Application: Automatic tool change of the vertical spindle centers on 4 drilling units of the two machining centers A and B.

Milling spindles
Electro spindle 1: 3.7 kW (5 HP), ISO 30, with inverter and 3-way tool change rack
Electro spindle 2: 3.7 kW (5 HP), ISO 30, with inverter and 3-way tool change rack

Lateral positioning units
Workstations: 2 for parallel processing of identical or mirror-inverted panels
left positioning element: fixed for lateral reference
Right positioning element: movable in X-direction, on lower supports, linearly guided
Adjustment: automatic according to the X-dimension of the panel
Drive: Brushless with digital control
Function: Detection of the actual X Length in the machining center, automatic correction of the drilling positions.
Max. travel speed: 120 m/min
Loading and unloading
Infeed system: 1 belt conveyor with cross feed, single drive
Unloading system: 1 belt conveyor with cross feed, single drive
Additional: Cleaning fan in the unloading area

Drill heads FHT (horizontal):
Machining centres with 2 working units (1 LH unit / 1 RH unit) - 3 working tables.
HORIZONTAL BORING UNITS with 24 independent spindles to be installed onto 2 operating units
HORIZONTAL INSERTING UNITS WITH 5+5 GLUE INJECTORS AND 8 mm. DIAMETER DOWEL INSERTERS
TOOL-HOLDER ADAPTOR for the quick change spindles of the boring units.
GLUE INJECTION AND DOWEL INSERTING UNIT for 8 mm. dia. dowels to be added to the standard ones.
The unit is prearranged for the insertion of 8 mm. diameter and 25-35 mm. long dowels.
The 8 mm. diam. dowel inserting units are required.

NOTE: Dowel inserting unit was never used and not tested. Not possible to be tested
ADVANTAGE C 3200 TRASV. 1 POS - loading
ADVANTAGE SC 3200 TRASV. 1 POS - unloading
Security features
Standards: CE compliant
Safety equipment: Extensive protective enclosures
