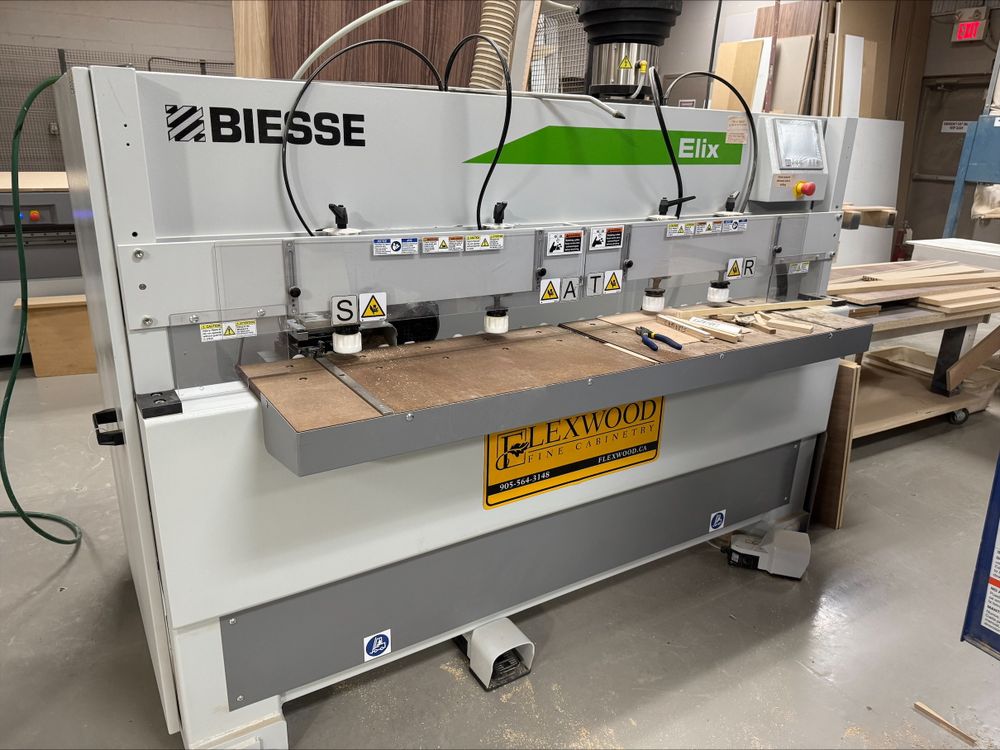

Biesse ELIX B

Drill, Glue & Dowel Inserter
Condition: Used – Very Good Condition

Key Features :
CNC-controlled drilling, glue, and dowel insertion
Compact point-to-point machining design
Brushless X-axis motion with ball screw drive
Integrated glue injection system (8L tank)
High-speed drilling unit (6,000 RPM)
Single dowel insertion unit (Ø8 mm standard)
Simple and intuitive CNC interface

Working Capacity / Material Specifications :
Panel Size:
Max length: up to 1300 mm
Thickness: 10 – 40 mm

Axis Movement:
X-axis stroke: 1300 mm
Traverse speed: 50 m/min

Drilling Capability:
Spindle speed: 6,000 RPM
Max hole depth: 30 mm
Max bit diameter: 12 mm

Dowel & Glue System :
1 dowel insertion unit (Ø8 × 30 mm standard)
Glue tank capacity: 8 litres
Electronic glue dosing system
Pneumatic dowel insertion system

Electrical Specifications:
Voltage: 220 V
Phase: 3 Phase
Frequency: 60 Hz
Amperage: 13A
Air Requirement: 7 bar

Control System :
Biesse industrial CNC
Touchscreen interface
Parametric programming
Program list management
Ethernet / USB connectivity

Condition Notes:
Very good operating condition
Fully functional and production-ready
Typical wear for machine age
Clean shop environment
