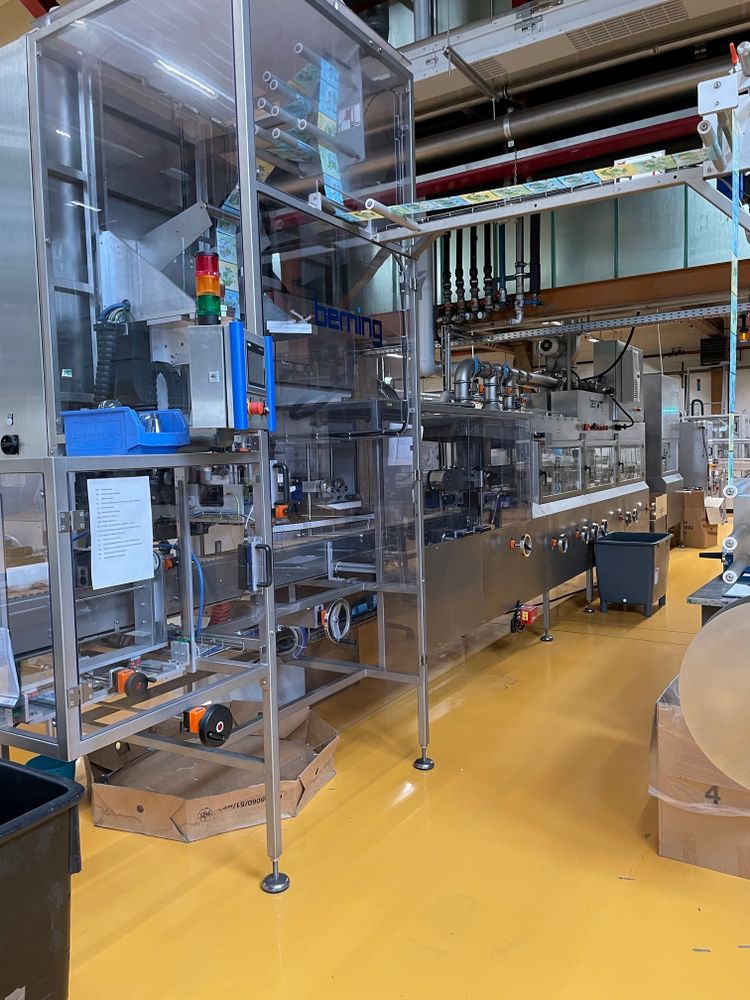

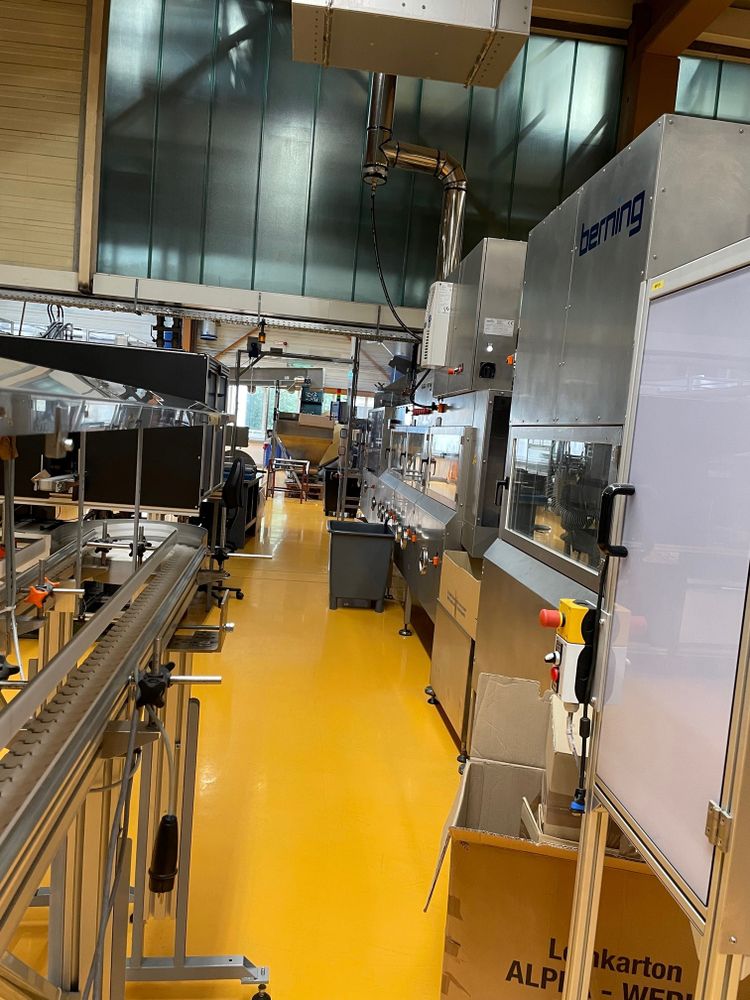

Berning Sleeve machine

Sleeve machine Berning
Includes steam tunnel
Includes heat-resistant modular belt
Year of manufacturing: 2017
Product diameter: 30–110 mm
Sleeve length: 30–370 mm
Full body: Max. 300 pieces per minute (depending on sleeve length)
Suitable product materials: PP, PS, PET; HDPE
Suitable sleeve materials: PET, PVC, OPS with hot melt

Function description:
At an interface, the products are transferred from a conveyor belt and
fed into the machine system.
The incoming products run into the screw system, where they are separated.
After separation, the sleeve is applied in the sleeving machine.
The sleeve application is fully automatic.
When the application is complete, the product is transported to the steam tunnel.

In the steam tunnel, the product and sleeve material shrink until the sleeve has
adapted to the contours of the product. After shrinking, the products are blown off in
the blow-off tunnel.

At the last station, the camera station, a check is made to ensure that the sleeve is
correctly positioned. If the position is correct, the product is discharged onto the
customer's conveyor belt. Incorrect products are ejected from the camera station by
blown air.

The products are automatically fitted with a sleeve in the sleeving machine.
The sleeve is fed into the sleeving machine and temporarily buffered using
the sleeve feed.
The sleeve feed rollers pull the sleeve over the mandrel. The mandrel opens the sleeve
and pushes it into the cutting position. The rotating blades of the blade plate cut the
sleeve to the length specified for the product. The sleeve section is catapulted onto
the product by the lower feed rollers. The product and sleeve then continue on
the conveyor belt for shrinking.

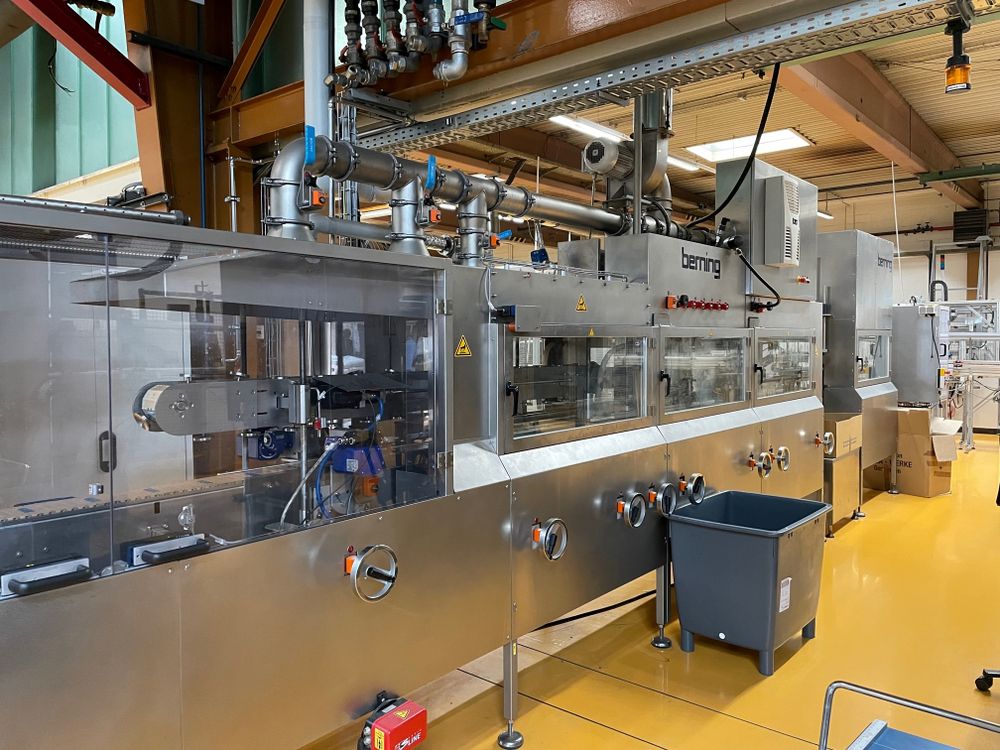

Different shrink rates can be set in each of the chambers of the steam tunnel.
From fixing and preheating to the actual shrinking, the dry steam shrinks the
sleeve so that it adapts to the contours of the products.
The heat-resistant modular belt takes over the products at the interface and transports them through the system.
Further data can be found in the attached data sheet
