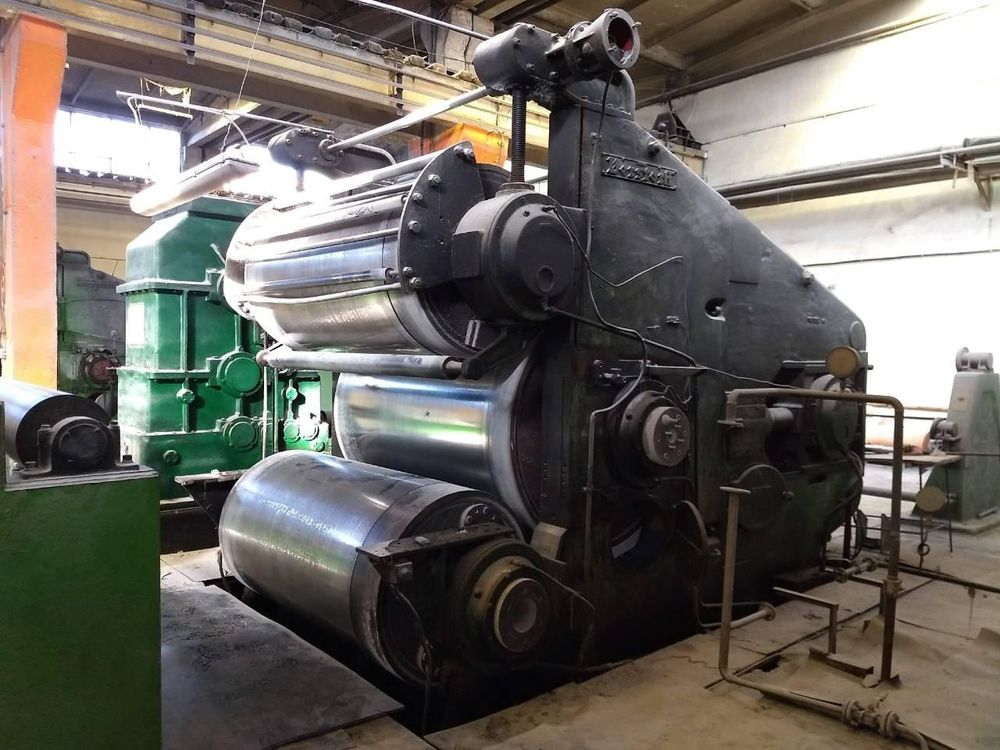

Berstorff AUMA 15 S

Heating drum made from welded steel with dimensions :
L=1950mm. D= 1540 mm.
Heating Roll working temperature : about 195 ⁰ C
Maximum steam work pressure : 13 bars
Top, Bottom and Back Roll, L= 1950 mm. D= 760 mm.
Roller Bearings on all 4 rolls , type 23068 ;
Lubrication: central oil lubrication;
Gearbox : 2 step gearbox , made by Seagers , Germany
Hydraulic cylinders – D= 160 mm.
Maximum hydraulic pressure : 250 bars
Original working speed : from 7 to 210 m/h
General weight : approx. 60 000 kg.
Original Sandvik belt;
Optional heating on front lower roll;
Complete machine in working condition
