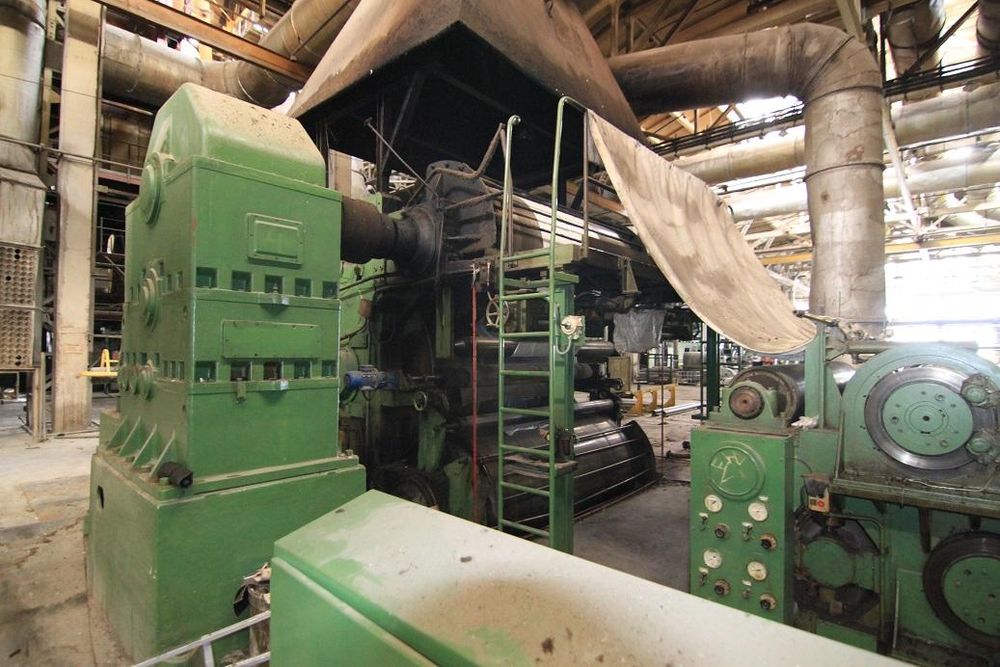

Berstorff AUMA 20 S

Width of drums : 2600 mm.
Diameter of heating drum - 2000 mm
Diameter of tension drums – 1400 mm
Steel belt : 2400 mm width, Sandvik steel belt
Belt tracking system with vertical movement of back roll housing
Infra red heaters at the back of the drum - 7 section with heaters
Width compensating unit – ability to work narrow sheets without
deforming the steel belt.
Total weight : approx 108 tons.
Complete machines with cleaning brushes, additional small heating roll
behind the heating drum for back side heating
1 pc Let off unit for max 2000 mm diameter with wind up position for
insulation
Tension unit for the feed in material
Wind up : Maximum diameter : 2000 mm.
