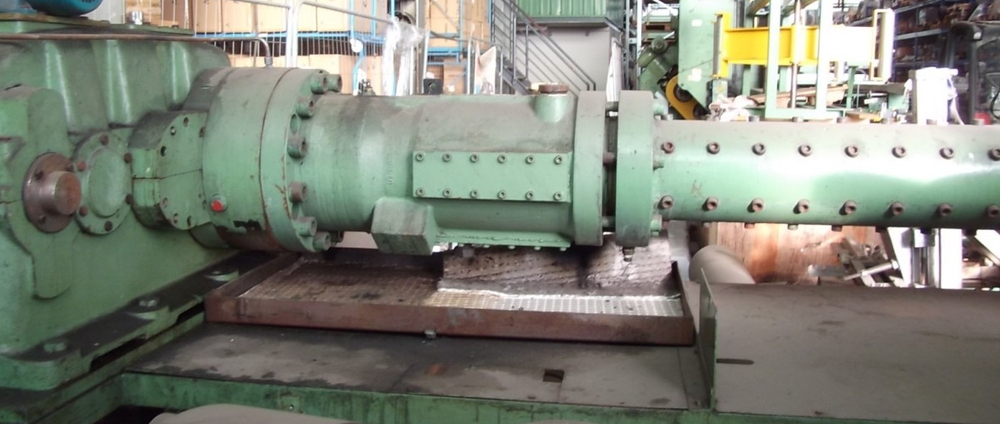

Berstorff GE-KS 120x14D

Working Area:
Condition: used,
will be overhauled
on a per-order basis, including warranty and CE marking

Specification: Extruder – used,
mounted on a base frame
- Screw diameter: 120 mm
- Screw length: L = 14D
- Mixing pins: 60 pieces
- Screw speed approx.: 40 rpm
- Motor rated power approx.: 90 kW
- Belt drive, number of belts:
- Flender gearbox with immersion and oil circulation lubrication
- Gearbox already overhauled at least once
- Head mount for nozzle discs, diameter approx. 150 mm
- Without drive motor, temperature control, and control cabinet
- Original documentation is available.
- Number of heating/cooling zones: 4
- Voltage: 3x 380V, 50Hz, N

Overhaul/conversion upon customer request or according to specifications.
