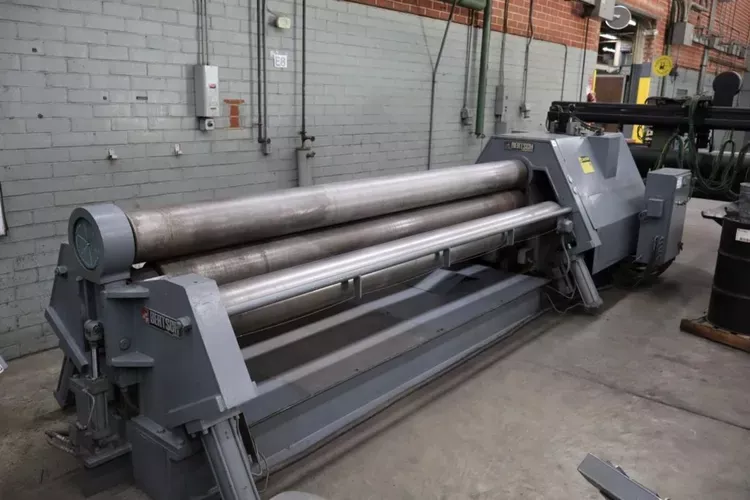

Bertsch 8

Bending capacity 12' × 3/8"
Pipe duty capacity 12' × 1/4"
Length of rolls 12'
Number of rolls 4
Top roll diameter 10"
Bottom roll diameter 11"
Side rolls diameter 10"
Motor power 10 hp
Overall dimensions 224" × 66"
Machine weight 34000 lbs

Machine equipped with
Hydraulic hinge drop end
Hydraulically adjusted lower pinch roll
Two hydraulically adjusted side rolls
Leveling system ensuring parallelism of side rolls and tilt
Side roll adjustment for pre-bending at rated capacity from either side
Control stand with three digital readouts
Roll tilting controls up/down and hinge open/close
