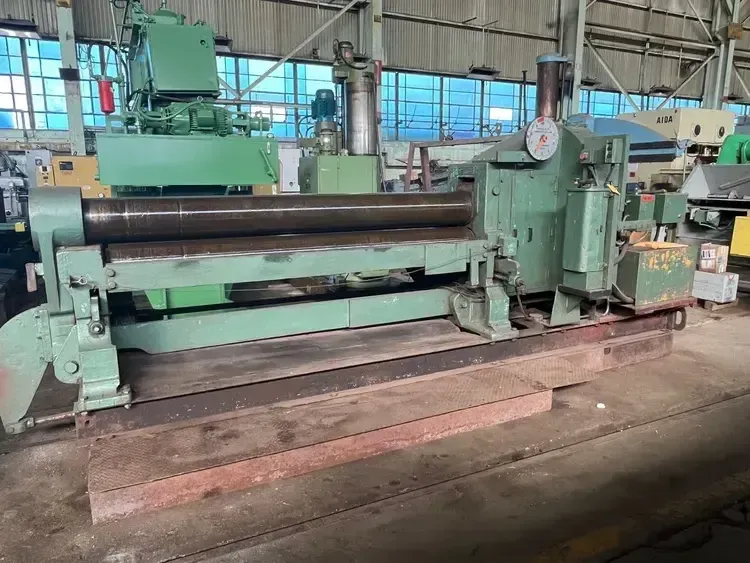

Bertsch 9 3-Roll Plate Bending Roll

Roll Configuration: 3 Rolls
Type: Mechanical
Pinch Type: Initial Pinch
Plate Bending Capacity (Boiler Duty, Mild Steel): 1/2" x 8'
Plate Bending Capacity (Pipe Duty, Mild Steel): 0.406" x 8'
Roll Length: 8.25'
Top Roll Diameter: 10"
Bottom Roll Diameter: 10"
Side Roll Diameter: 10"
Rear Roll Diameter: 10"
Minimum Rollable Diameter (Single Pass): 11.5" ID (.406" Thickness)
Max Rolling Speed: 1,150 RPM
Power: 15 HP
Electrics: 230-460/3/60

Equipped With:
Air Drop End
Power Bottom Roll Adjustment
Dial Indicator for Bending Roll Position
Forward & Reverse Switch
Automatic Lubrication System
Beam Mounted (No Pit Required)

Dimensions: 224" x 90" x 84"
Machine Weight: 20,100 lbs
