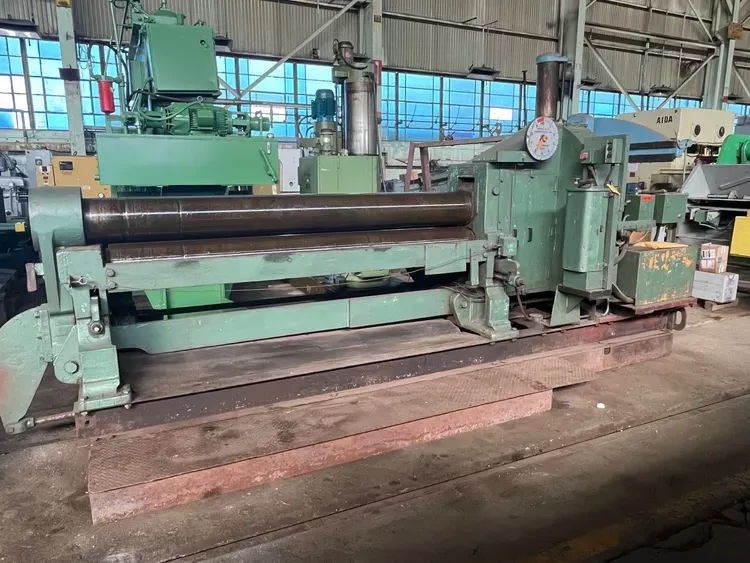

Bertsch 9

Length of Rolls: 8.25 ft
Max Plate Thickness: 0.5 in
Number of Rolls: 3
Roll Diameter: 10 in
Top Roll Diameter: 10 in
Bottom Roll Diameter: 10 in
Rear Roll Diameter: 10 in
Initial-Type Pinch Configuration
Power Rear Roll
Drive Motor Power: 15 HP
Motor Speed: 1150 RPM
Air Drop End
Dial Indicator for Roll Position
Forward and Reverse Switch
Automatic Lubrication System
Beam Mounted Design
No Pit Required
Electrical System: 230-460V / 3 Phase / 60 Hz
Weight: 20,100 lbs
