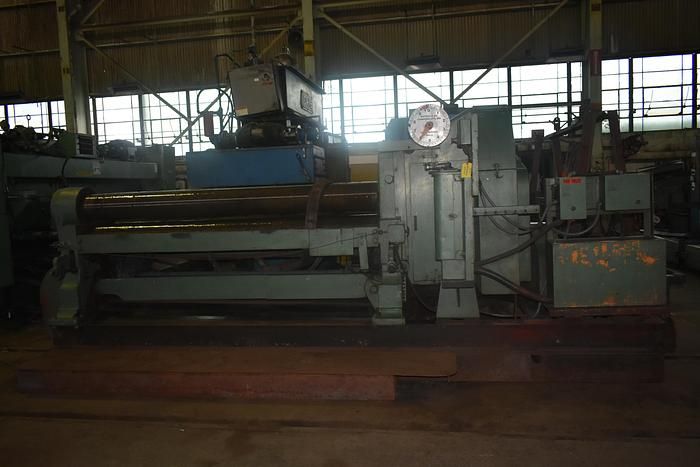

Bertsch 9

Air drop end
Dial indicator for bending roll position
Forward and reverse switch
Automatic lubrication system
Beam mounted (no pit required)
Plate bending capacity, boiler duty @ 60,000 PSI: 8′ × 1/2″
Plate bending capacity, boiler duty @ 60,000 PSI: 64″ × 9/16″
Plate bending capacity, pipe duty @ 60,000 PSI: 8′ × 13/32″
Plate bending capacity, pipe duty @ 60,000 PSI: 52″ × 7/16″
Length of rolls, overall: 8′3″
Top roll diameter: 10″
Bottom roll diameter: 10″
Rear roll diameter: 10″
Drive motor: 15 HP / 1150 RPM
Electrical system: 230-460V / 3Ph / 60Hz
Weight: approximately 20,100 lbs
