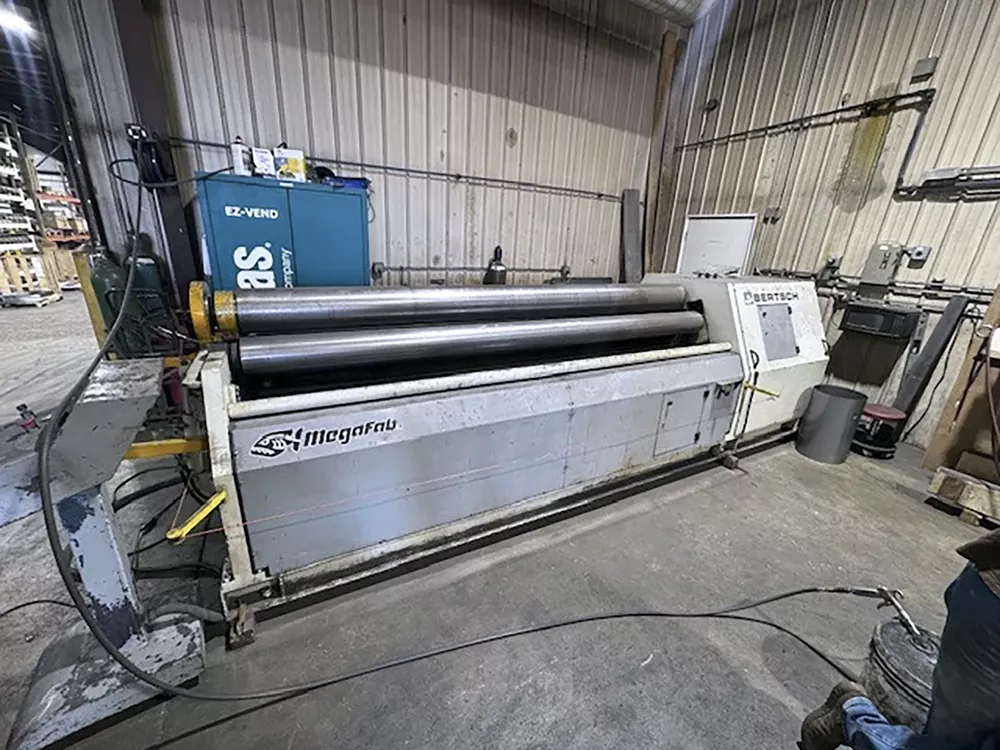

Bertsh4R HMC 3100/220

Technical Data
Control: Other
Number of rolls: 4
Length of rolls: 122"
Max rolling length: 122.05"
Max material thickness: 5/16"
Pre-bending capacity: 1/4"
Top roll diameter: 8.66"
Bottom roll diameter: 8.66"
Side roll diameter: 7.09"
Minimum bending diameter: 13"
Minimum bending diameter for thin material: up to 43"
Plate yield strength basis: 24 kg/mm²
Working speed: approx. 5 m/min
Main motor power: 5.5 kW
Hydraulic motor power: 1.5 kW
Powered rolls: top and bottom

Features / Equipment
CNC control
Double pinch
Electric motor and gearbox driven top roll
Hydraulically adjustable lower rolls (center and side)
Hydraulic balancing system
Mobile control pendant
Induction-hardened forged steel rolls
Hydraulic drop-end for part removal
New motor and brakes
