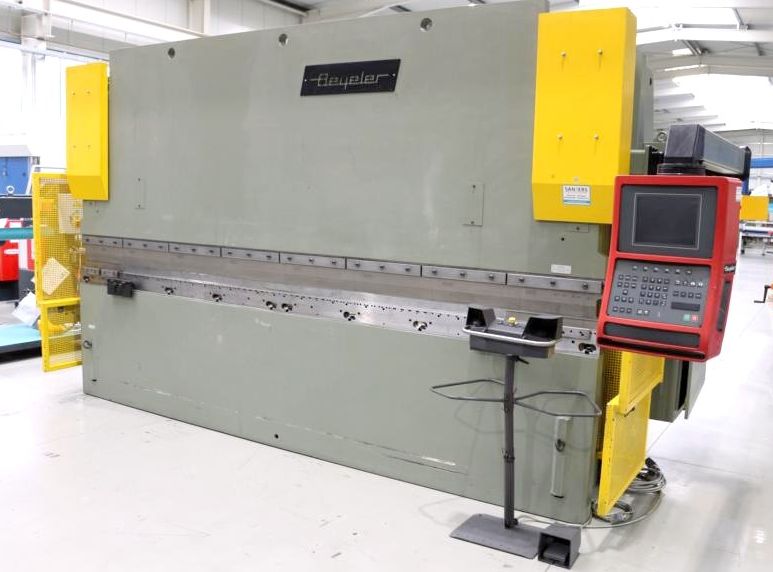

Beyeler PR 3 1000 KN x 4100 MM 100 t

Control Type CNC
Press Capacity 100 t
Chamfer Length 4100 mm
Distance Between Columns 3700 mm
Column Arm 415 mm
Stroke Max. 215 mm
Daylight 410 mm
Adjustment Speed 200 mm/sec
Working Feed 10 mm/sec
Return Speed 150 mm/sec
Work Height Max. 1080 mm
Table Width 100 mm
Control CYBELEC
Oil Volume 160 l
Voltage 400 V
Power Capacity 8.5 kW
Weight 10200 kg
Machine Dimensions 4800 x 1800 x 2600 mm
Electro-Hydraulic CNC Press Brake
CNC CYBELEC Control Unit DNC 1200 PS/B
High-Resolution Screen
Clear, Concise Menus in Operator's Language
Tool and Product Library
Swiveling Control Panel, Front Right
CNC-Controlled Axes (Y1+Y2-X)
CNC-Controlled Backgauge Adjustment (X Axis)
2x Manually Adjustable Stop Fingers
Manual Upper Tool Clamping
Manual Lower Tool Clamping
Rear Safety Device (Safety Door)
Side Safety Device (Safety Doors)
Bending Tools
1x Set of Split Upper Tools (ROLLERI TOP 175.26.R08)
1x Set of Split 1V Dies (V 12 mm)
2x Freely Movable 2-Hand Controls
2x Freely Movable Foot Switches
Operating Instructions for Control System
