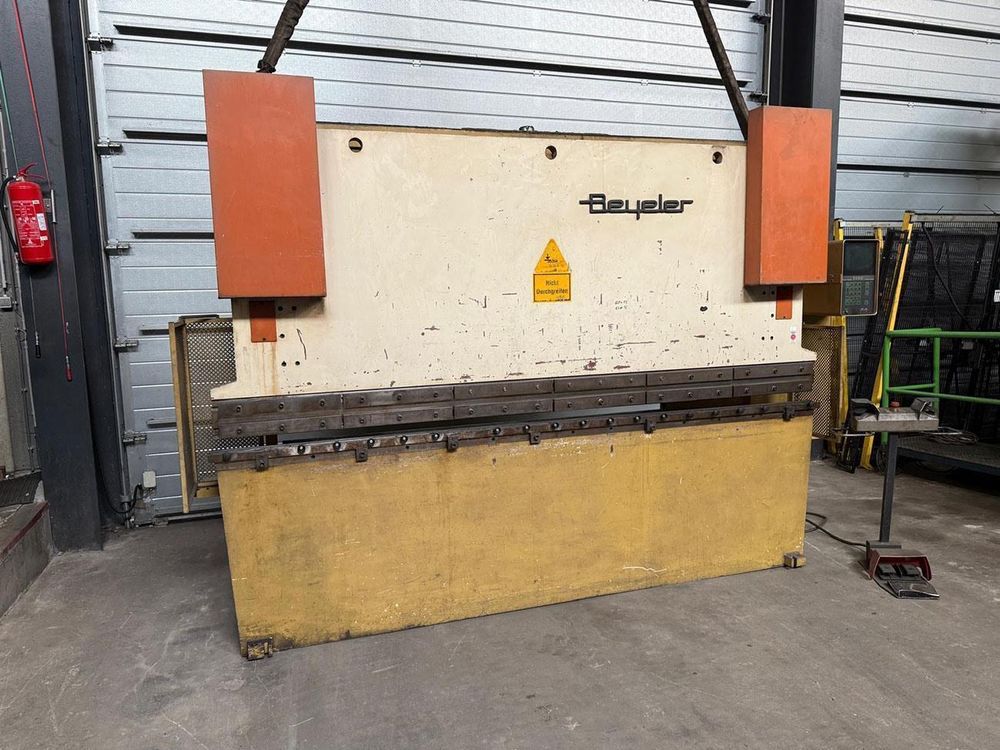

Beyeler RH 100 TON X 3100 MM CNC
Ref :
2735691-3-CP
Condition :
Used
Manufacturer :
Beyeler
Model :
RH
Pressure :
100 TON X 3100 MM CNC
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Press force: 100 tons
Bending length: 3100 mm
Backgauge: Manual
Passage between uprights: 2630 mm
Stroke: 215 mm
Max distance between table and ram: 410 mm
Throat depth: 255 mm
Locking speed: 100 mm/sec
Working speed: 6.5 mm/sec
Motor power: 5.5 kW
Machine length: 3300 mm
Machine depth: 1550 mm
Machine height: 2450 mm
Machine weight: 7 tons
CNC axes: Y1 / Y2 / X
Upper and lower Amada system tooling
