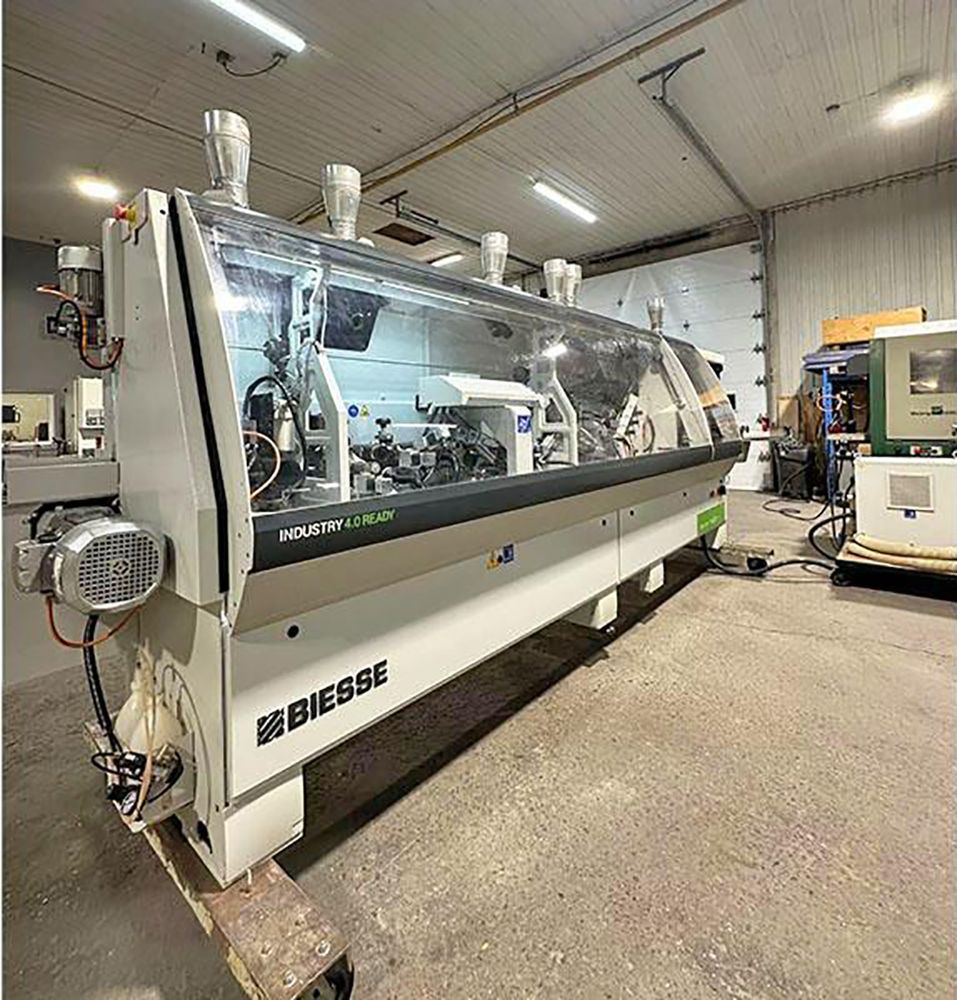

Biesse Akron 1440

Edgebander

Working Capacity:
Min. panel height: 10 mm
Max. panel height: 60 mm; height of edgebanding material: 14 – 64 mm
Thickness of edgebanding material in rolls: 0.4 – 3 mm
Thickness of edgebanding in strips: 0.4 – 10 mm.
Min. panel protrusion from the track: 25 mm
Panel length: 140 – 3,200 mm; min. panel width with 140 mm length: 85 mm; min. panel width with 250 mm length: 50 mm.
Multifeed speed: 8 – 12 – 15 &18 MPM.

Glue & Pressure Section
Infrared Lamp: IRL 700; Gluing unit: Quickmelt “QM 703” EVA melting glue.
Special glue container for PU glue; additional glue container for EVA gluing unit with melting device.
Additionally equipped with: AirForce “VC-710”, High pressure; hot air system to reactivate special precoated edge material (commonly referred to as laser edge).
Automatic edge feed; cutter knife; pressure zone with: (1) Drive & (2) pressure rollers.

Working Units
Premilling unit with: 2 x 0.8 kW – 12,000 RPM motors; front/rear inclination: 0° – 15°.
“RT 02” Gluing, edge feeding, and pressing unit VC-511.
End trimming unit with: 2 x 0.8 kW – 12,000 RPM; front/rear; inclination: 0° – 15°.
Fine Trimming unit: 2 × 0.6 kW – 12,000 RPM Top/bottom.
(2) Multifunction Corner Rounding units: 0.65 kW Each for corner rounding; straight workpieces; post & soft forming: 90° -180°.
Edge scraper unit.
Glue scraper unit.
Buffing unit: 2 × 0.37 kW Motors.Machine Features
Belt pressure beam: Top presser comprises a rubber belt with a stain-proof coating.
The thrust exercised on the panel is provided by: Springs housed on technopolymer connecting rods.
Auto. adjustment of feed fence.
Automatic track lubrication system with: Dynamic track absorption.
Manual infeed system: For narrow pieces.
(1) Coil automatic edge feeding.
Hybrid gluing head for: Granulated EVA & Polyurethane glue.
Premelter “TM10” for: Polyurethane glue in cartridges.
On demand toploading premelter for PUR glues.
Adaptive infrared lamp to heat up the panel side before the glue application to optimize the adhesion process.
Independent pneumatic exclusion of the top/bottom fine trimming unit.Operator & Machine Control
BIESSE Windows-Based “SMART TOUCH” control & Operating System.
Easy program management & usability; rapid transition from: (1) Machining operation to the next: Modern, intuitive graphic interface.

Complete with:
Sliding unit for corner rounding unit for the application of: Sliding liquid before the corner rounding unit.
Cleaning unit “LPT02” Applies a cleaning liquid of the glued edge, providing a perfect polishing of the edge.
