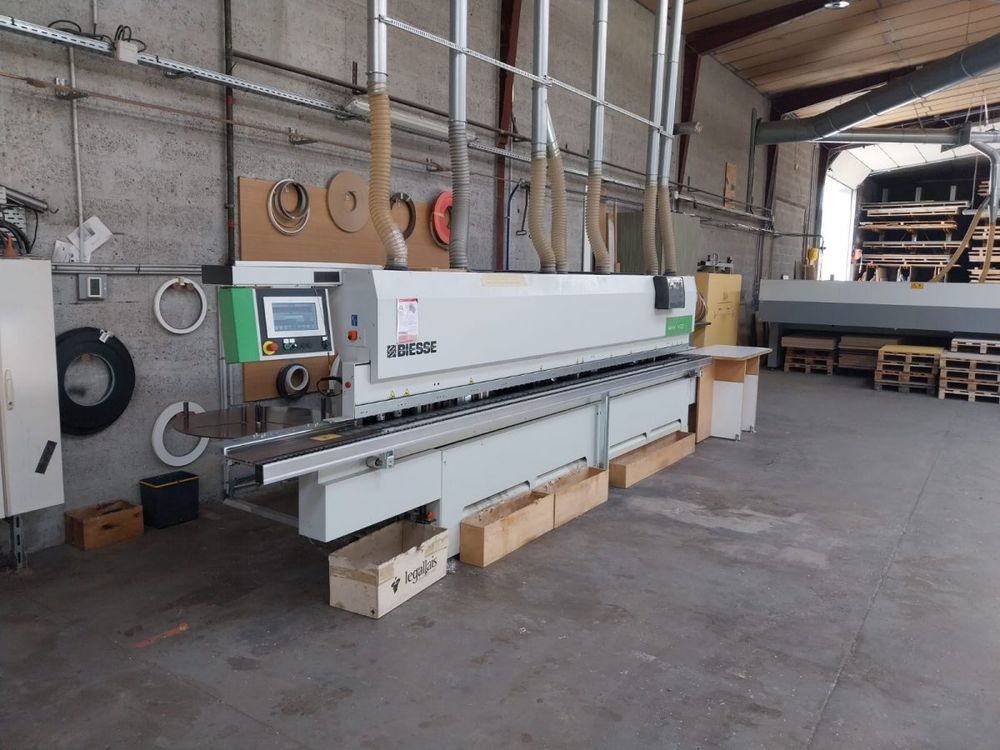

Biesse EDGE AKRON 1440-A

Digital Edgebander
Condition: Used

- Digital beam positioning
- Dual motor calibration, 65 mm cutting height
- Infrared preheating zone
- Pneumatic 3-roller pressure zone
- Anti-adhesive sprayer
- Glue pot with granular gluing system and 2 kg pre-melter
- Double end trimming
- Automatically positioned trimming
- Dual-motor shape copying
- Automatic positioning
- Pneumatically positioned shape scraper
- Pneumatically positioned surface scraper
- Polishing sprayer
- Finishing brushes

Technical specifications:
Workpiece thickness 10-60 mm
Edge height 14-64 mm
Edge roll material thickness: melamine, PVC, ABS, veneer 0.4-3 mm
Edge strip material thickness: 0.4-10 mm
Workpiece projection: 25 mm
Min. panel length: 140 mm
Minimum width (at 140 mm length) 85 mm
Minimum width (at 250 mm length) 50 mm
Feed speed 8-12-15-18 m/min
Jointing unit
IRL 700 infrared lamp
Gluing unit Quickmelt QM 703 EVA melting adhesive
Special glue container for PU glue
Additional glue container for EVA gluing unit with melting device
Automatic edge feed
Cutting knife
Pressure zone 1, 2 rollers
Crosscutting unit 2 x 0.8 kW, 12,000 rpm forward/reverse, tilt 0°-15°
Fine cutting unit 2 x 0.6 kW, 12,000 rpm up/down
2 multifunctional shape milling units 0.65 kW each Corner rounding, straight parts, post and soft forming 90-180 degrees
Assembly milling unit 2 x 1.8 kW; 12,000 rpm
Scraping unit
Flat scraper
Polishing unit 2 x 0.37 kW
NC SMART TOUCH control
Connected power 13 kW
Weight 1900 kg
Machine dimensions 5500 x 1700 mm
