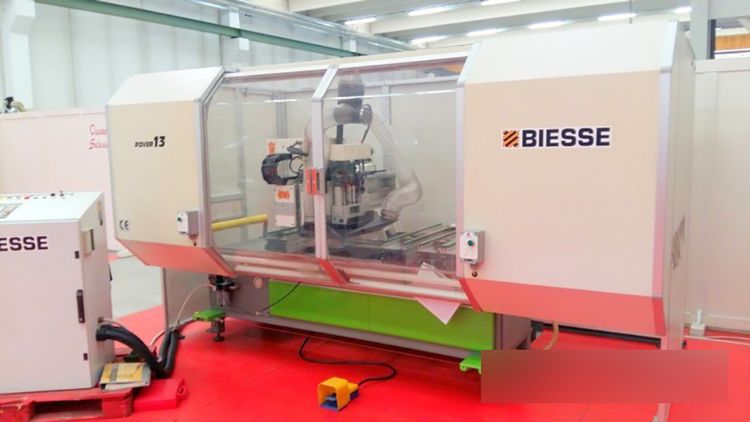

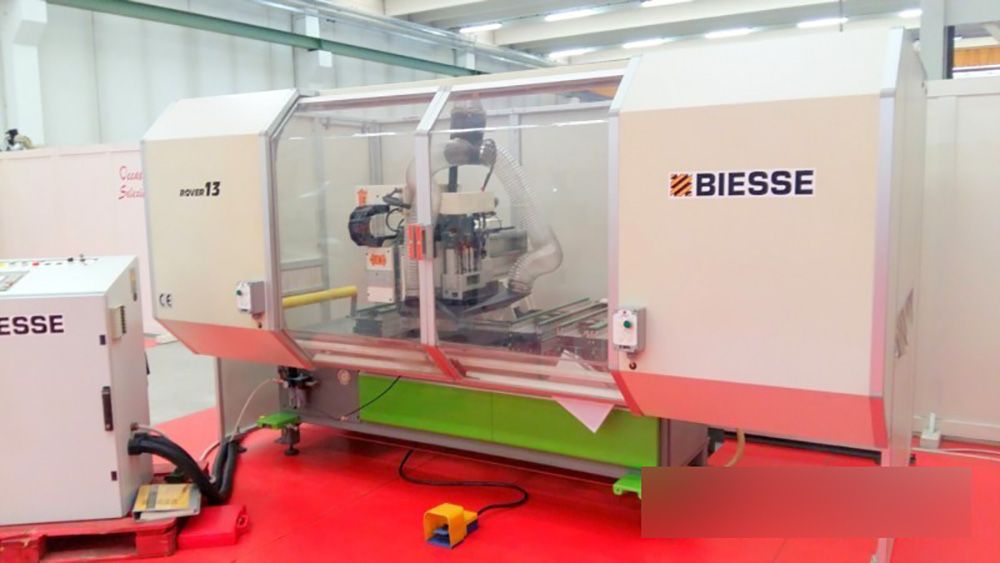

Biesse ROVER 13

CNC Working center with 3 controlled axis for furniture, custom-made furniture ,
panels, kitchens, wooden doors and various - Ce Standard

Working area X axis mm 1600
Working area Y axis mm 850
Stroke Z axis mm 70
X axis speed 75 mt/min
Y axis speed 60 mt/min
Z axis speed 15 mt/min
Milling group Kw 2,2 18.000 rpm
Vertical boring unit 8 spindles
Horizontal boring bits X nr. 2
Horizontal boring bits Y nr. 2
Tool shank diameter 10 mm
Spindle rotation speed 4000 rpm
Blade group for milled diameter mm 120
Work table: 4 bar plans
Vacuum pump 40 m3/h
Total power Kw 10
Numerical control NC 400: 6-inch alphanumeric and high-resolution colour graphic display
Full-coverage safety cabin
Compressed air 6 atm
Machine overall dimensions mm 2450 x 1550 x 1900 h
Overall dimensions with guard mm 3500 x 1900 x 2000 h
Weight about kg 1550
