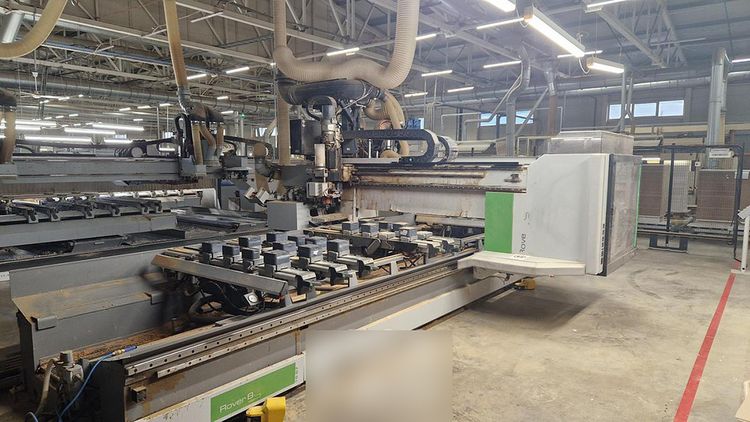

Biesse Rover B Edge 1667 4 axes

CNC Machining Center
• X axis working area: 6735 mm
• Y axis working area: 1650 mm
• Working Table: Pod and Rail
• Main Electro spindle Power: 13.2 kW
• Number of Controlled Axes: 4 axes
• Max Edge Height: 60 mm
• Total Number of Drilling Spindles: 20
• Total Number of Tool Changer Positions: 16

• Subfamily: CNC Machining Centers for Routing, Drilling, and Edgebanding
• Type of Work: Edgebanding, Drilling, Routing
• Maximum Panel Passage: 60 mm
• Number of Working Fields: 2
• Working Table: Pod and Rail
• Number of Rails: 10
• Pod Position Indicators
• Vacuum Cups for Securing Workpieces
• Number of Vacuum Cups: 40
• Clamps for Securing Workpieces

• Vacuum Pump
• Number of Pumps: 1
• Single Pump Capacity: 250 m³/h

• Boring Units: 1 (Top)
• Vertical Boring Spindles: 20
• Horizontal Boring Spindles in X: 4
• Horizontal Boring Spindles in Y: 4
• Router Spindles: 1 (Top)
• Number of Controlled Axes: 4
• Automatic Tool Changer
• Motor Power: 13.2 kW
• Edgebanding Operating Units: 1

• Gluing Unit: Mounted on Main Beam
• Glue Pot for Hot-Melt Adhesive
• Edge Coil Magazine
• Number of Magazine Positions: 4
• Grooving Unit: 2 Top Units, Fixed for Grooving in X and Y
• Tool Magazine: 1, with 16 Positions
• Tools Positioned on the Machining Head
• Combination Head for Edge Scraping and Glue Scraping
• Air Jet Panel Edge Cleaning Unit
• Control System: PC Control
• Machine Programming Software: Bsolid
• Protective Structure for Operating Units with Safety Sensors
• Waste Chip Conveyor
