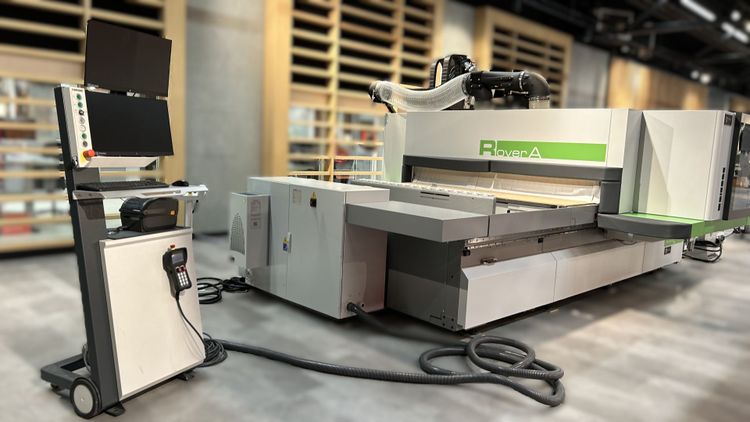

Biesse Rover A 2231 FT 3-axis

CNC nesting machine (Demo-model)
Engine power: 13.2 kW HSK 63F
3-axis motor (C-axis ready)
Drilling unit: BH-17L
Safety system: stand-alone, accessible from 3 sides
Table system: FT-plus
Operating direction: left to right
Multi-zone vacuum table; 16 zones
Cups: 4 x 132x146 mm and 4 x 132x75 mm. H = 33 mm
Blower in the worktable
Left-hand tool changer with 16 positions
Trailing X-axis tool changer with 8-position turret
High-precision linear cams at the front
Sensor for cam position detection
Pivoting function
Sweeper arm: automatic release system (incl. upgrade for NC positioning)
Manual label printer (MyVa)
Vacuum pump: 2 x 290 m³ claw pumps
Length measurement system
Automatic lubrication system
Blower unit with 4 ring nozzles
Extension cable for keyboard operation
Lighting system within the shielding of the control units
Flange for 3-axis aggregates
bTouch screen
Additional touchscreen monitor
Remote keyboard controller
Software: bSolid base, bNest, bNest assembly module, bNest graphic editor
Office keys
