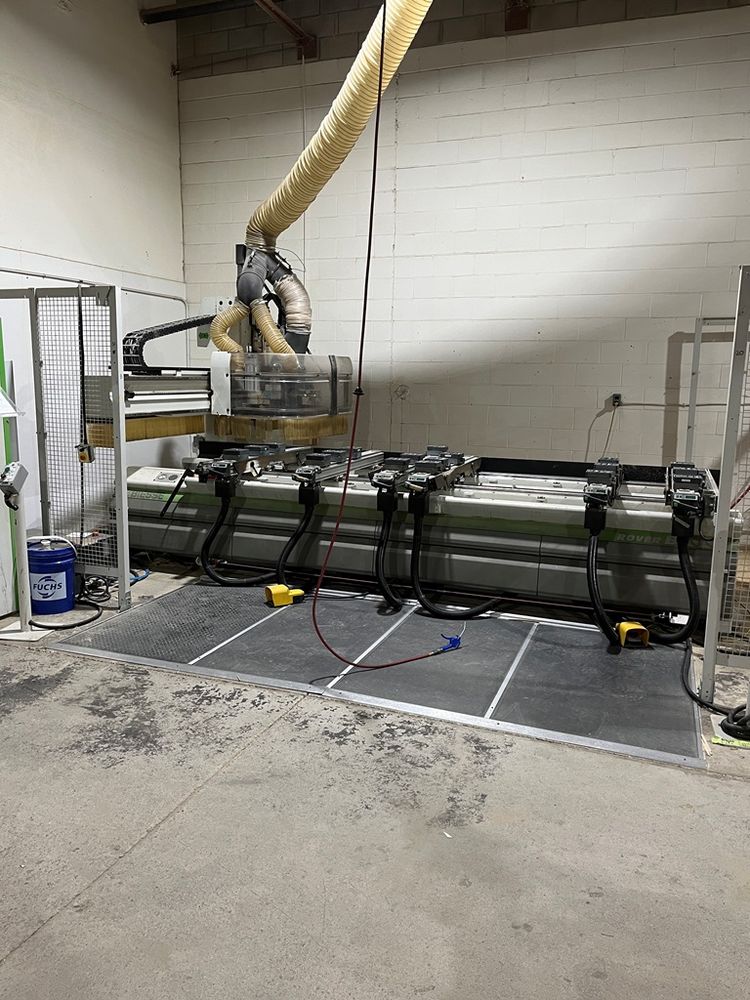

Biesse Rover B 4.35

-Working field, X-axis: 3200mm (125.9")
-Working field, Y-axis: 1315mm (51.7")
-Maximum material thickness: 150mm (5.9")
-Positioning speed, X-axis: 80 MPM (262 FPM)
-Positioning speed, Y-axis: 80 MPM (262 FPM)
-Positioning speed, Z-axis: 20 MPM (66 FPM)
-Axis stroke, X-axis: 3752.5mm (14.7")
-Axis stroke, Y-axis: 1639mm (64.5")
-Axis stroke, Z-axis: 160mm (6.3")

BORING UNIT :
-12 spindles for vertical boring
-6 spindles for horizontal boring
-Motor: 1.7kW (2.5 HP)
-Saw diameter: 120mm (4.7")
-Saw unit motor power: 1.7kW (2.5HP)

ROUTING UNIT:
-Motor: 7.5kW (10.5HP)
-Connection: ISO30
-Tool shank dimensions: 6-25mm (0.23-1")
-10 position ride-along tool magazine
-Maximum tool diameter: 160mm (6.3")
-Dimensions: 6000 x 2200 x 2100mm (19.7` x 7.2` x 6.9`)
-Weight: 3300kg
