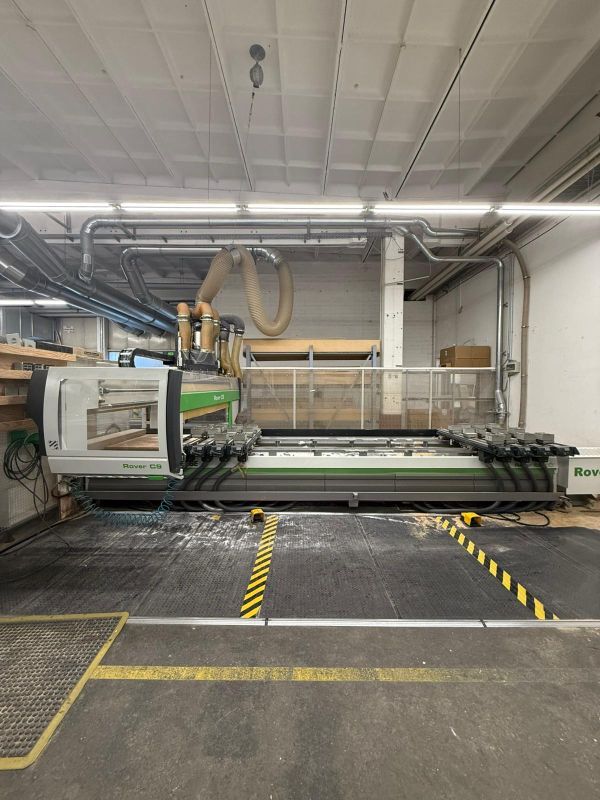

Biesse Rover C 9.50 5 axes

CNC machining center
Technical data:
- Working area: X=4600 mm / Y= 1935 mm / Z=275 mm
- CE safety devices
- 8 ATS plate holders - L = 1525 mm - 24 slide rails
- Automatic positioning of 8 plate holders and slide rails (EPS X-Y)
- Conveyor belt for removing chips and scrap pieces
- Pneumatic locking system, divided into 2 working areas in X
- 8 rear reference stops with a stroke of 115 mm
- 8 stops with a stroke of 140 mm, positioned at 1175 mm (L= 1280 - 1525 - 1800 mm)
- 8 stops with a stroke of 140 mm, positioned at 770 mm (L= 12 80, 1525, 1800 mm)
- 4 side stops with a stroke of 140 mm (2 Lh + 2 Rh) including pneumatic system.
- 4 removable center stops with a stroke of 140 mm (2 Lh + 2 Rh) including pneumatic system.
- Sensor for detecting lowered stops.
- Pneumatic system for lifting bar holders.
- 6 lifting bar holders for easy loading - H=74 mm modules.
- Vacuum system for a 250 m3/h pump
- 250 m3/h rotary vane vacuum pump for standard vacuum system

Composition C3-A1
- Device for mounting chip deflectors with pneumatic or inductive sensors on a 5-axis machining unit
- Flange for mounting units on a work unit with 5 interpolating axes *Units can only be used when the electric spindle is in a vertical position.

Composition C3-P2
- Additional Z slide for rear work units, controlled by an independent Z axis
- BH 42 L drilling head
- Chain tool changer with 22 positions at 180 mm center distance
- Iron gripper for chip deflector with pneumatic or inductive sensor, positioned in the chain tool changer
- RH chip deflector with inductive sensor for standard electric spindle or 15 kW 5-axis electric spindle
* requires the device for the chip deflector
* requires the flange for mounting units when using a 5-axis electric spindle
* requires the C-axis when using a standard electric spindle

- Liquid cooling unit for liquid-cooled systems can cool two electric spindles or one electric spindle and one liquid-cooled drilling head.
- Automatic lubrication system
- Control unit with 5 interpolation axes
This unit enables numerically controlled interpolation of the electric spindle on 5 axes.
The electric spindle has high performance and reduced dimensions.
