Biesse Winline 1650

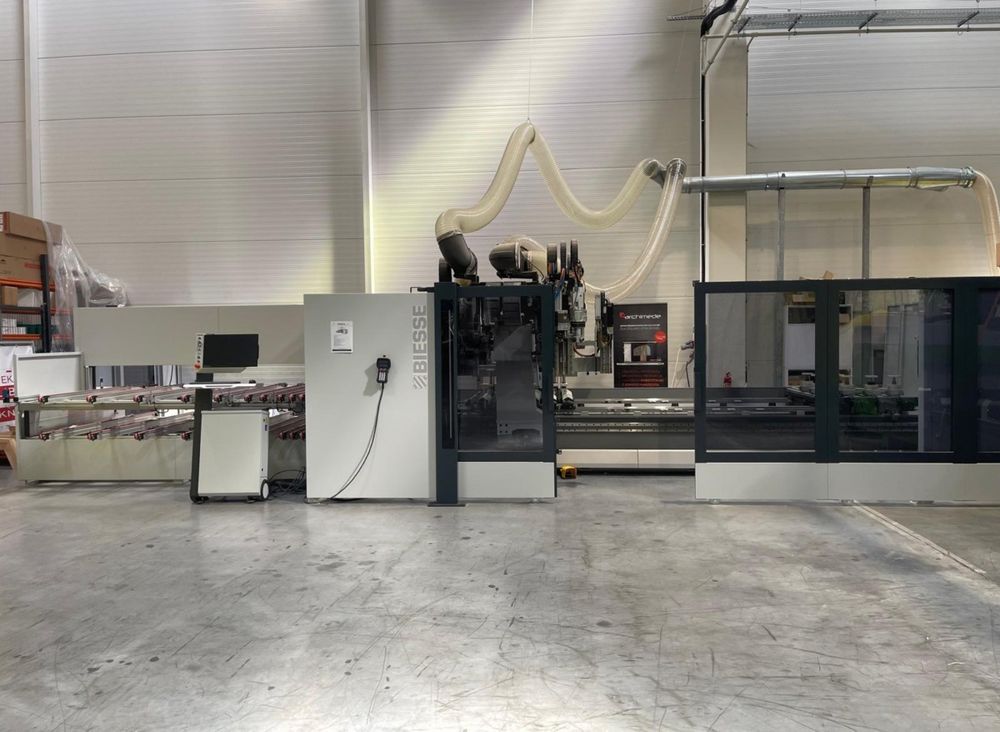

Winline 1650 with loading and unloading system
CNC machining center for fully automated window and door production

Workpiece dimensions (configuration):
Automatic loading (raw stock dimensions):
Length (X): 300 mm to 3,220 mm
Width (Y): 25 mm to 264 mm
Thickness (Z): 20 mm to 150 mm

Maximum working area:
X-axis: Up to 3,570 mm (with combined finger and EPS tables)
Y-axis: 1,500 mm

Work table:
6 finger consoles with individual clamps,
4 HTS consoles, and 12 adjustable mounting positions for arched components and vacuum-clamped parts.

Main spindles:
Two liquid-cooled 30 kW high-performance electro-spindles (HSK-F63),
interpolating 360° C-axis, optimized for heavy-duty machining at low speeds.

FlexyWood PLUS:
Multifunction unit with tilting A-axis and integrated drilling head featuring 3 independent vertical spindles.
Atemag interchangeable aggregates

Tool changer:
Main magazine: Automatic chain-type changer with 44 tool positions
(generous 180 mm center-to-center spacing to prevent collisions when handling large profile diameters).
