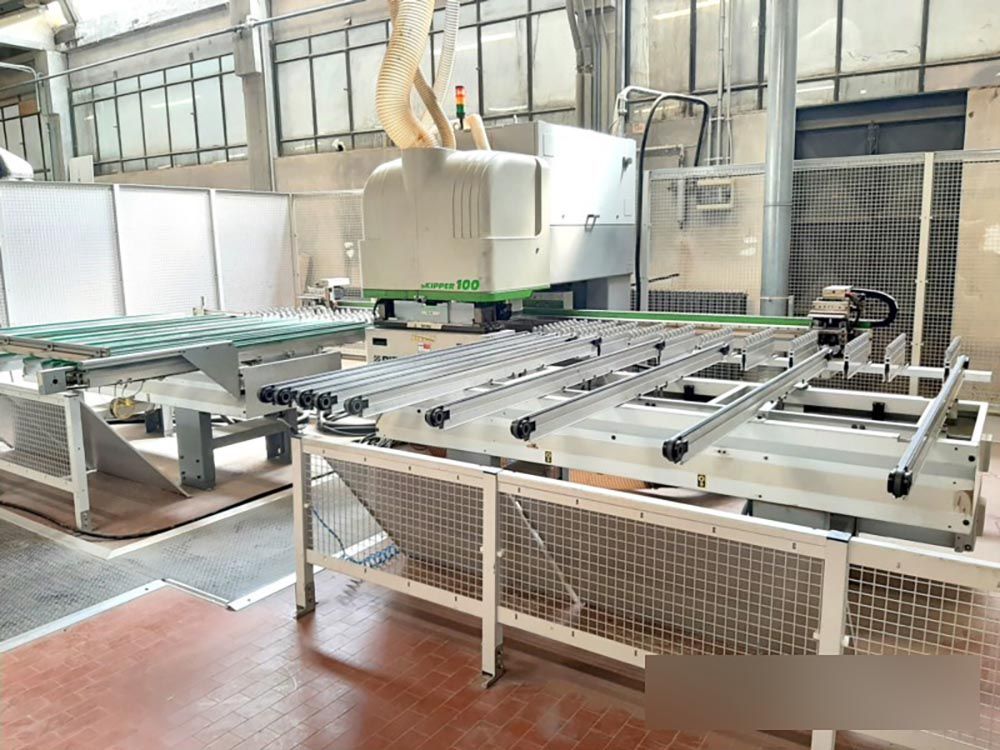

Biesse SKIPPER 100 3-axis

CNC working center for furniture, kitchens, custom furniture, panels and various - CE Standard
Technical data:
3-axis (x-y-z) CNC working center - swan neck machine
Movable panel, fixed working head - panel horizontally
Integral protection of the working head and with emergency front carpets
Numerical control with biesseworks software
Infeed table (with motorized belts) left
N. 2 panel fixing clamps (for their introduction into the working area)
Outfeed table (with motorized belts) right
Useful (maximum) working area (x - y - z) mm 3000 x 1000 x 60
Dimensions (minimum) workpieces that can be machined (x - y - z) mm 90 x 70 x 8
Dimensions (maximum) workpieces that can be machined (x - y - z) mm 3000 x 1000 x 60 (for panels longer than mm 2000, the minimum thickness becomes mm 13)
Total installed power (kw) 20 (approx.)

Lower working units:
N. 1 vertical electro spindle hsk d-50 (power Hp 4,8) with inverter
N. 1 circular saw unit (on x-axis) dia. mm 150 (power Hp 2,3) with inverter
N. 29 vertical drilling spindles
N. 10 horizontal drilling spindles (8 in x-axis + 2 in y-axis)

Upper working units:
N. 1 vertical electro spindle hsk d-50(power Hp 4,8) with inverter
N. 1 circular saw unit (on x-axis) dia. mm 150 (power Hp 2,3) with inverter
N. 29 vertical drilling spindles
N. 10 horizontal drilling spindles (8 in x-axis + 2 in y-axis)

Transfer for panel loading and unloading: structure made of aluminum profiles,
belt-driven table for panel translation/lifting bar
BiesseWorks machining programming system
Compressed air 7/8 bar
Total power Kw 20
Overall dimensions - (see attachment)
Machine weight kg 2700
