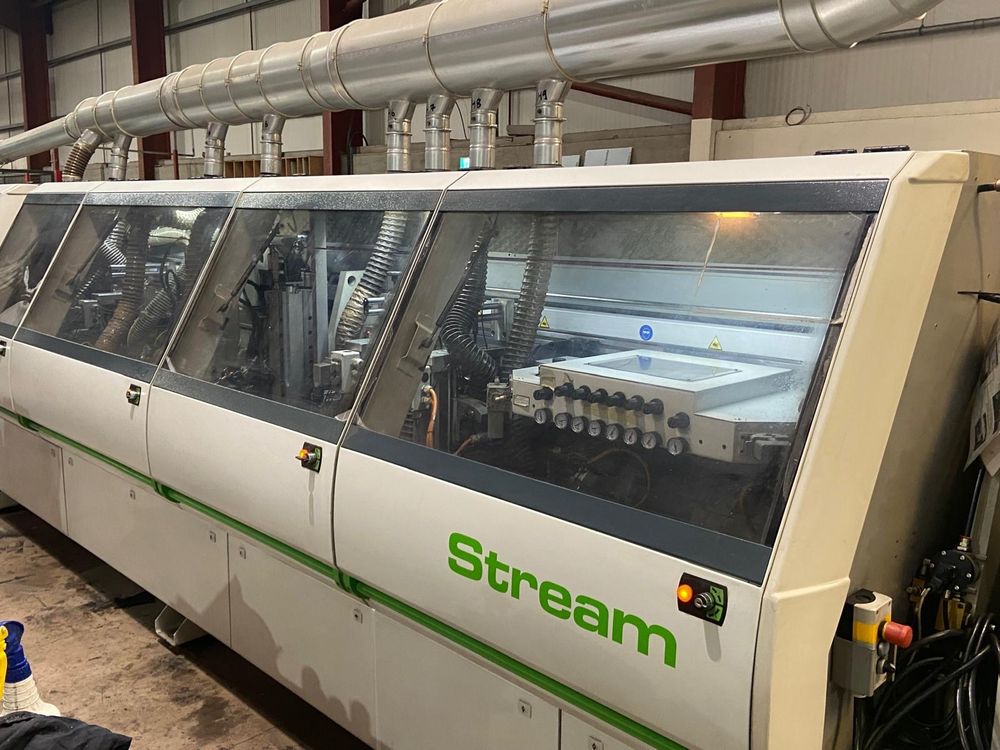

Biesse Stream B1 10.5

CNC Machine
General specifications:
Machine type: Single-sided automatic edgebander.
Control system: PC control with NC (numerical control) axes for automated unit positioning.
Feed rate: Up to 25 m/min. Some configurations may have a continuously variable feed.

Overall dimensions:
Length: Approximately 11,640 mm (11.64 meters).
Weight: Can vary based on configuration, often in the 8,300–8,500 kg range.
Installed power: Can be up to 40 kW or more depending on the units installed.

Workpiece and edgeband capacity:
Panel thickness: Up to 60 mm.
Edgeband thickness: Up to 3 mm for coiled material.
Minimum workpiece length: 150 mm.
Minimum workpiece width: 150 mm, though some sources list 55 mm for the Edge Stream model.
Coil magazine capacity: Up to 6 positions, though options for higher capacity are available.

Processing units:
Premilling unit: Features two motors for edge preparation (e.g., the RT30 unit mentioned in).
Gluing unit: Supports various systems, including premelting units for granulate glue, and can be optioned with a PUR gluing system.
Zero joint technology: Uses a hot-air system (such as the Biesse AirForce System) for applying laser edges.
End-trimming unit: Two-motor unit for precision trimming of the edgeband at the front and rear of the panel.
Milling units: Typically includes two motors for flush, radius, and chamfer milling.
Corner rounding unit: Two-motor unit for contour trimming and rounding corners.
Scraping units: Includes both profile scraping (for radius) and flat scraping.
Buffing unit: Used for final polishing of the edg
