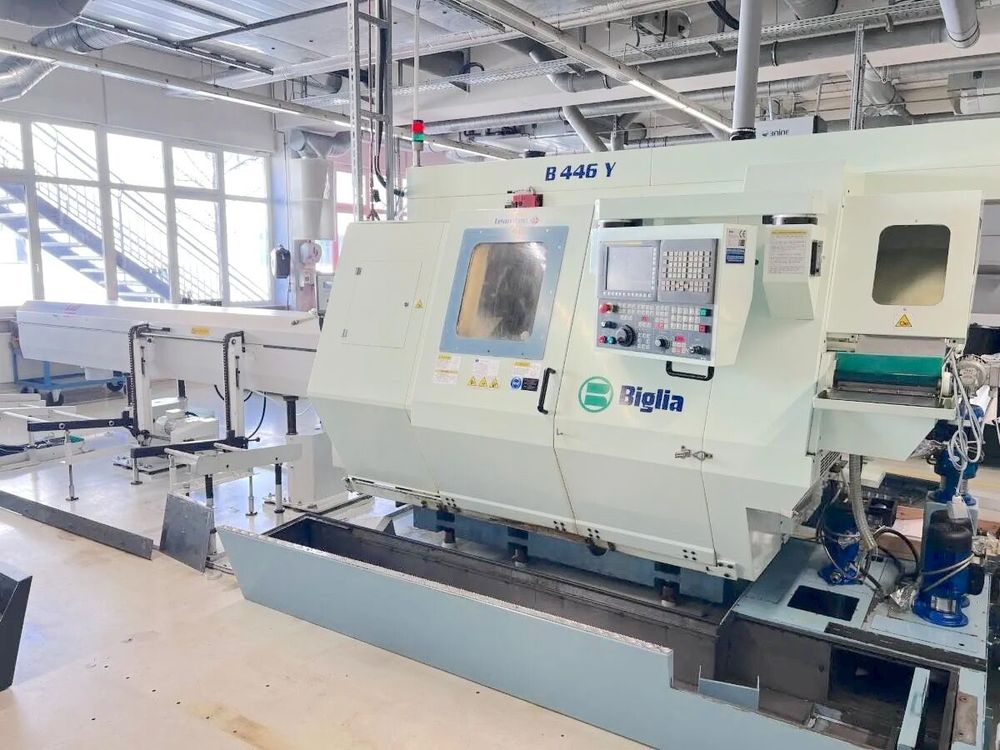

Biglia CNC CONTROL 5000 rpm B446Y 6 Axis

Axis stroke X2: 170 mm
Axis stroke Z2: 390 mm
Axis stroke Y2: 90 mm (-40 / +50 mm)
Axis stroke X3: 170 mm
Axis stroke Z3: 400 mm

Rapid feed X2: 18 m/min
Rapid feed Z2: 30 m/min
Rapid feed Y2: 9 m/min
Rapid feed X3: 18 m/min
Rapid feed Z3: 30 m/min
Rapid feed B: 30 m/min

Automatic B axis positioning: 420 mm
C axis accuracy: 0.001° (main spindle)
C axis accuracy: 0.001° (sub spindle)

Tool presetter: Marposs TT30
Coolant pump: 20 bar
Bar feeder: LNS Hydrobar Sprint S3
Workpiece unloading device with conveyor belt
Chip conveyor
Workpiece conveyor belt
Bar capacity: 45 mm
Main spindle speed: 5000 rpm
Main spindle power: 15 kW
Main spindle nose: ASA5
Main spindle bore: 55 mm
Sub spindle speed: 5000 rpm
Sub spindle power: 11 kW
Sub spindle nose: ASA5
Sub spindle bore: 55 mm
Driven tools speed: 4000 rpm
Driven tools power: 3.7 kW
Turret 2 positions: 12
Turret 2 driven stations: 12
Turret 3 positions: 12
Turret 3 driven stations: 12
Machine weight: 7200 kg
Machine dimensions: 4400 x 2150 x 2200 mm
