Traub TRAUB TX8i 5600 TNC 42/65 8

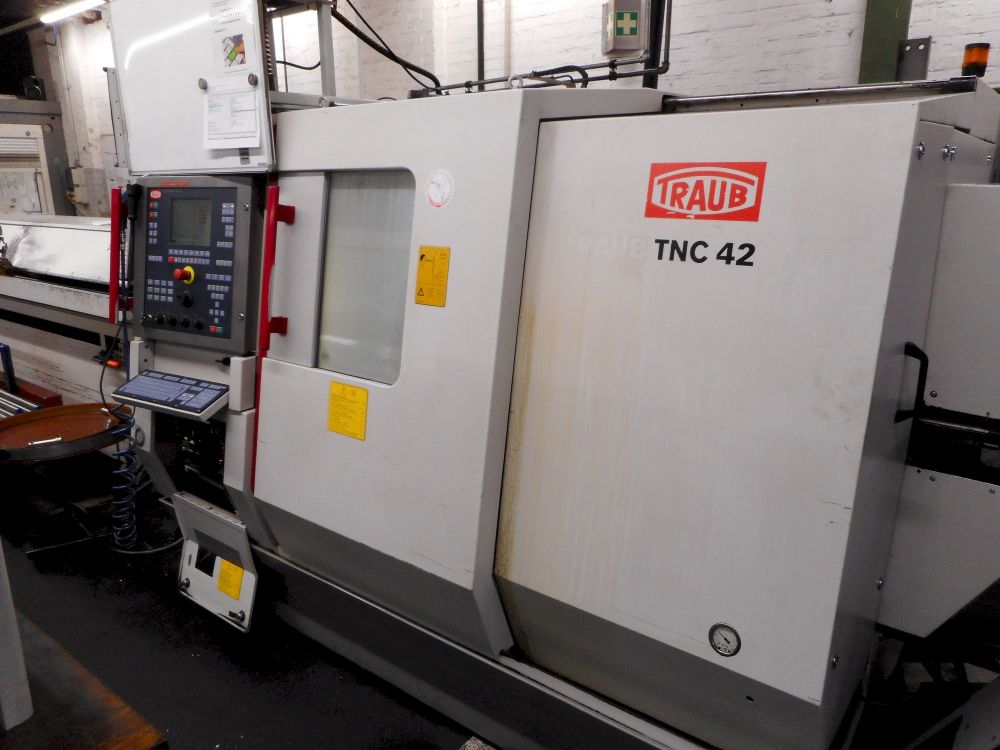

CNC Lathe TRAUB TNC 42/65



TECHNICAL CHARACTERISTICS:

Year of manufacturing: 2009
CNC control: TRAUB TX8i
Number of axes: 8
Stroke Y axis: +/- 35 [mm]
Stroke Z1 axis: 450 [mm]
Stroke X1 axis: 140 [mm]
Stroke Z2 axis: 520 [mm]
Stroke X2 axis: 140 [mm]
Stroke E axis: 450 [mm]
Spindle throughbore: 42 [mm]
Max. spindle speed: 5600 [rpm]
Increment C-axis: 0.001 [°]
Spindle power: 18.5 [kW]
Counter spindle throughbore: 42 [mm]
Max. counter spindle speed: 5600 [rpm]
Counter spindle increment C-axis: 0.001 [°]
Counter spindle power: 11 [kW]
Type of tool holders: VDI 30
Number of tool stations - Turret 1: 14
Number of tool stations driven - Turret 1: 14
Max. speed driven tools - Turret 1: 4000 [rpm]
Number of tool stations - Turret 2: 14
Number of tool stations driven - Turret 2: 14
Max. speed driven tools - Turret 2: 4000 [rpm]
Total power required: 107 [kVA]
Rated current: 85 [A]
Supply voltage: 400 [V]
Weight: 5600 [Kg]


INCLUDED EQUIPMENT:

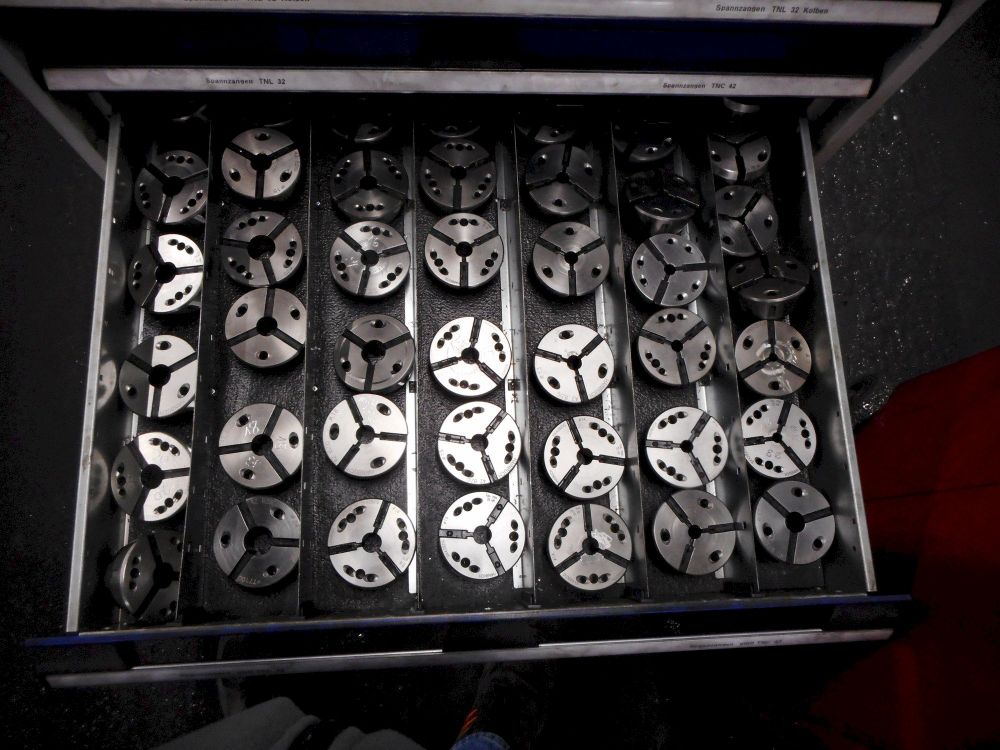

x1 Set of collets

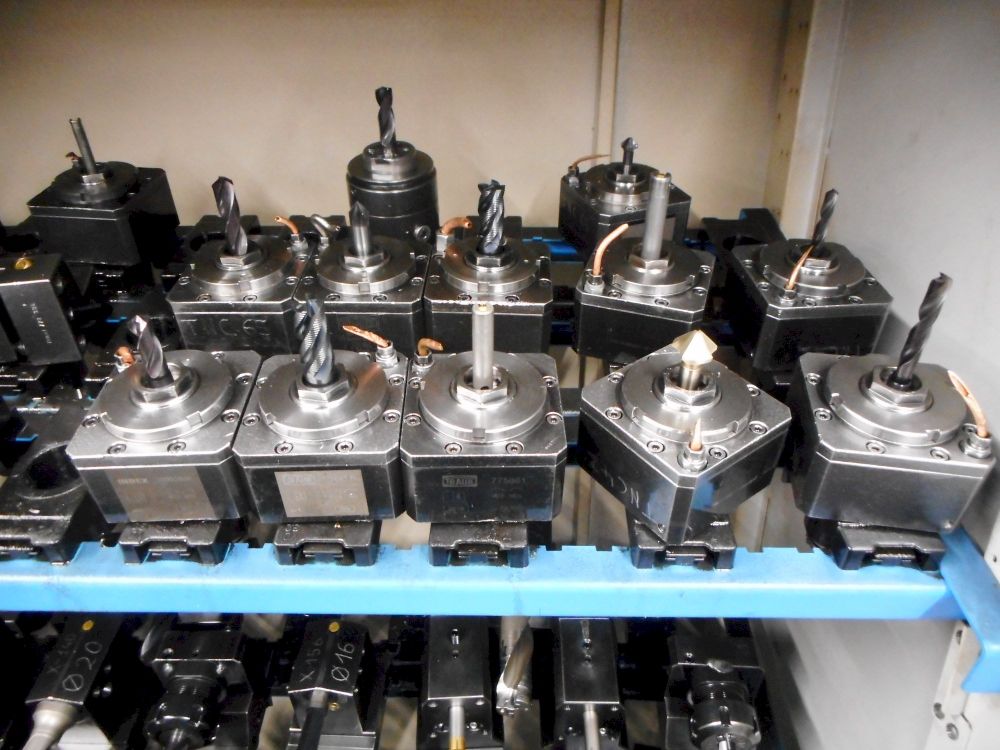

x1 Set of tool holders
x1 Chip conveyor

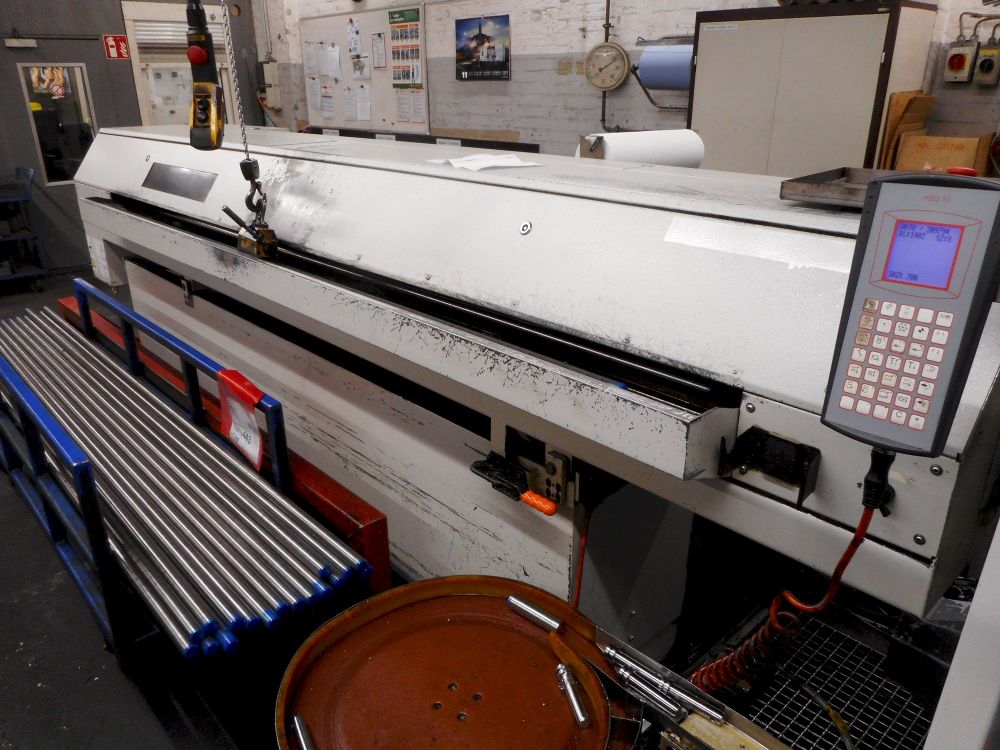

x1 IRCO PROFIMAT ECO 42.6 bar feeder
x1 KNOLL coolant system



Price on request, loading on truck included.

Possibility of shipping Worldwide.
