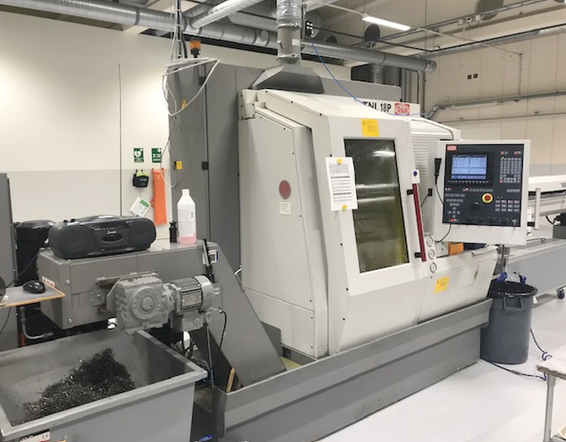

Traub TRAUB SYSTEM TX 8i-p 8,000 RPM TNL 18P 6 Axis

Z-Axis Travel: 205 mm
X-Axis Travel: 120 mm
Z-Axis Travel (Lower Turret): 250 mm
Y-Axis Travel: -20 / +40 mm

Number of Axes: 6
Number of Spindles: 2
Control: TRAUB SYSTEM TX 8i-p
High Pressure Coolant: 30 bar
Water Cooler
Paper Filtration System
Tool Presetting Block
Guide Sleeve
Milling Attachment
Lamp
Fire Extinguishing System
Chip Conveyor
Workpiece Conveyor
Bar Feeder: FMB Minimag 20

Bar Capacity: 20 mm
Bar Feeder Capacity: 2 - 23 mm
Maximum Bar Length: 4200 mm
Turning Length: 180 mm
Collet Type: F25

Main Spindle Speed: 8,000 RPM
Back Spindle Speed: 6,400 RPM
Main Spindle Motor Power: 2.2 / 3.7 kW
Back Spindle Motor Power: 1.5 / 2.5 kW

Upper Turret Positions: 8
Upper Driven Tool Positions: 8
Upper Driven Tool Speed: 12,000 RPM

Lower Turret Positions: 7
Lower Driven Tool Positions: 7
Lower Driven Tool Speed: 6,400 RPM

Counter Operation Tool Positions: 7
Counter Operation Driven Tool Positions: 3

Voltage: 400 V
Frequency: 50 Hz
Total Connected Load: 24 kVA

Machine Weight: 4,000 kg
Machine Dimensions: 2500 x 1460 x 2250 mm
