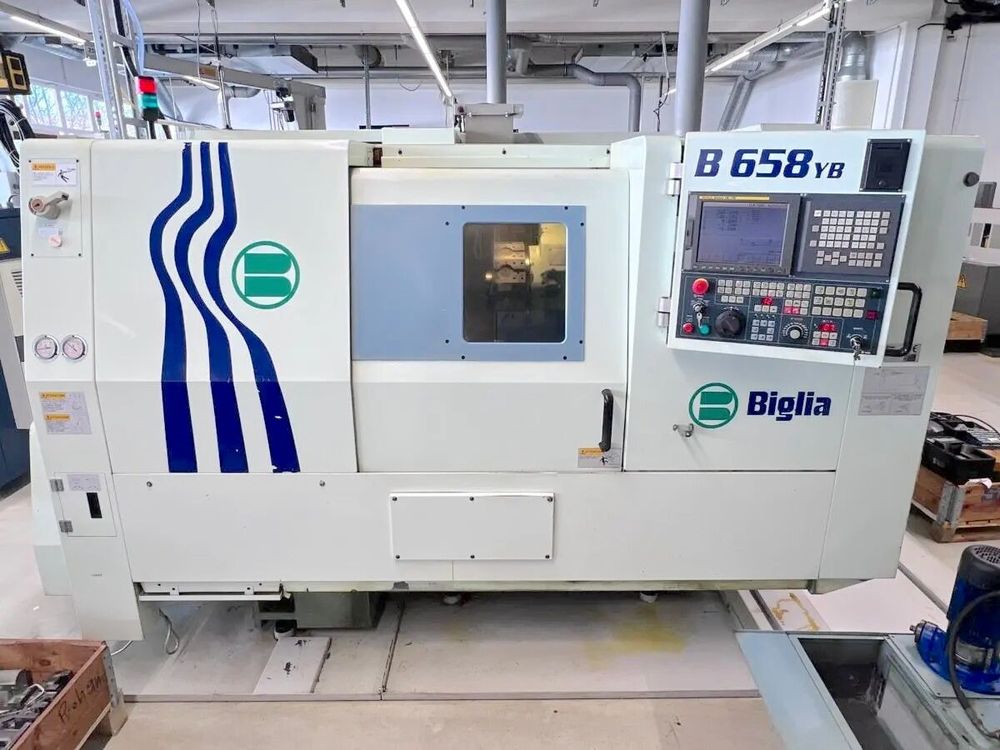

Biglia Fanuc 18i-T 3500 rpm B658YB 5 Axis

Axis stroke X2: 255 mm
Axis stroke Z2: 670 mm
Axis stroke Y2: 110 mm (+60 / -50 mm)
Axis stroke B: 665 mm
Rapid feed X2: 20 m/min
Rapid feed Z2: 24 m/min
Rapid feed Y2: 7.5 m/min
Rapid feed B: 15 m/min
C axis speed: 100 rpm
C axis accuracy: 0.001°
Control: Fanuc 18i-T
Manual Guide
Tool load monitoring (SBS)
Bar capacity: 82 mm
Turning diameter: 490 mm
Turning length: 670 mm
Main spindle speed: 3500 rpm
Main spindle power: 22 kW
Main spindle torque: 539 Nm
Main spindle nose: ASA8
Main spindle bore: 91 mm
Driven tools speed: 4000 rpm
Driven tools power: 5.5 kW
Driven tools torque: 70 Nm
Turret positions: 12
Driven stations: 12
Chuck: SMW Autoblok HFKS-2G-255-72-3
Tailstock taper: CM5
Machine weight: 6300 kg
Machine dimensions: 4450 x 1900 x 2100 mm
Chip conveyor
Coolant pump 10 bar
Bar feeder interface
Mist extractor interface
