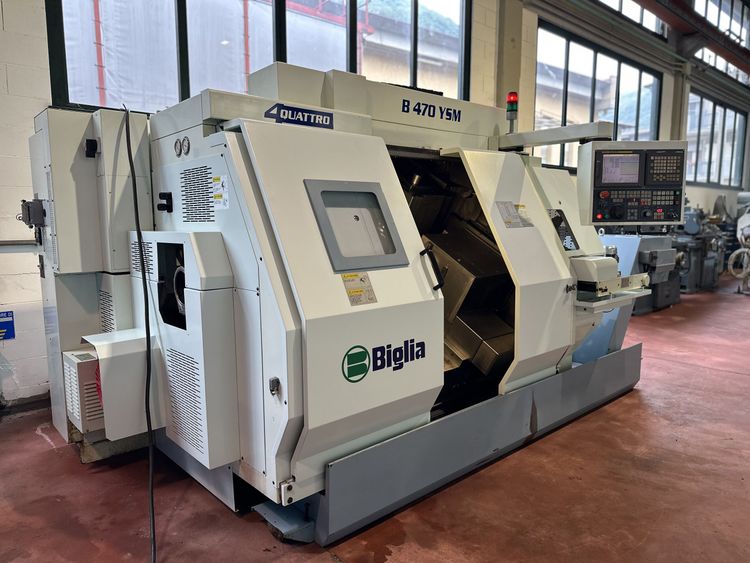

Biglia Fanuc 18i-TB CNC 4000 RPM B470YSM 6 Axis

X1 axis travel: 160 mm
Z1 axis travel: 390 mm
Y1 axis travel: 100 mm
Rapid feed X1: 20 m/min
Rapid feed Z1: 24 m/min
Rapid feed Y1: 6 m/min
X2 axis travel: 160 mm
Z2 axis travel: 240 mm
Rapid feed X2: 12 m/min
Rapid feed Z2: 20 m/min
C axis accuracy: 0.001°
Sub spindle C axis accuracy: 0.001°
Control: Fanuc 18i-TB CNC
Max turning diameter: 520 mm
Turning length: 240 mm
Max bar capacity: 68 mm
Main spindle speed: 4000 RPM
Main spindle nose: ASA6"
Main spindle bore: 80 mm
Main spindle bearing diameter: 110 mm
Main spindle power: 26 kW
Sub spindle speed: 4000 RPM
Sub spindle nose: ASA5"
Sub spindle bore: 55 mm
Sub spindle bar capacity: 45 mm
Sub spindle bearing diameter: 80 mm
Sub spindle power: 11 kW
Driven tools speed: 4000 RPM
Driven tools power: 3.7 kW
Turret positions: 12
Driven stations: 12
Turret indexing time: 0.15 sec
Machine weight: 6900 kg
Floor space: 4150 x 2100 x 2200 mm
