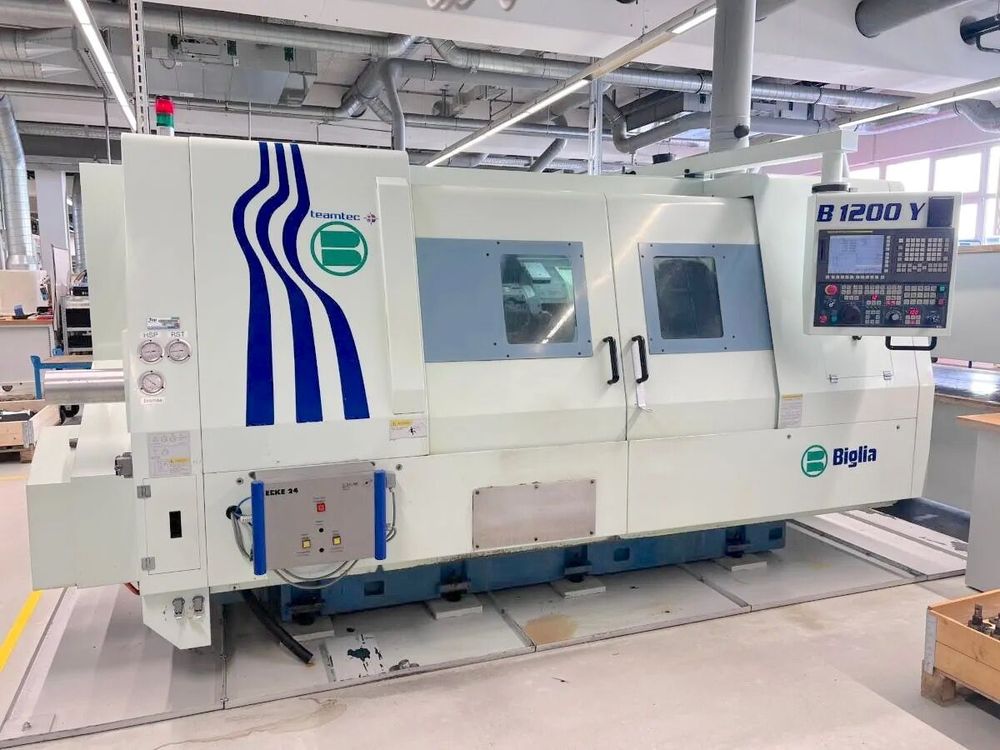

Biglia Fanuc 18i-TB control 2800 rpm B1200Y 2 Axis

Max bar diameter: 92 mm
Max turning diameter: 410 mm
Max turning length: 1315 mm
Max diameter over bed: 700 mm

C axis positioning accuracy: 0.001°
C axis speed: 100 rpm

Fanuc 18i-TB control
Manual Guide
SBS system
Anti-collision system

Spindle speed: 2800 rpm
Spindle nose: ASA8
Spindle bore: 111 mm
Bearing diameter: 150 mm
Spindle power: 30 kW
Spindle torque: 776 Nm

Driven tools speed: 4000 rpm
Driven tools power: 5.5 kW

Axis X travel: 255 mm
Rapid feed X: 20 m/min
Axis Z travel: 1315 mm
Rapid feed Z: 24 m/min
Axis Y travel: 110 (+60/-50) mm
Rapid feed Y: 7.5 m/min

Turret positions: 12
Driven tool stations: 12
Turret indexing time: 0.15 sec

Chuck size: 315 mm
Toolholders included
Driven toolholders included

Tailstock quill diameter: 115 mm
Tailstock stroke: 150 mm
Tailstock taper: CM5
B axis travel: 1200 mm

Chip conveyor
Hydraulic steady rest preparation
Bar feeder preparation
Automatic parts unloader preparation
Coolant pump 18 bar with filter

Weight: 7250 kg
Machine dimensions: 5100 x 2000 x 2100 mm
