Biglia FANUC series 32i-B 3500 B750 YS

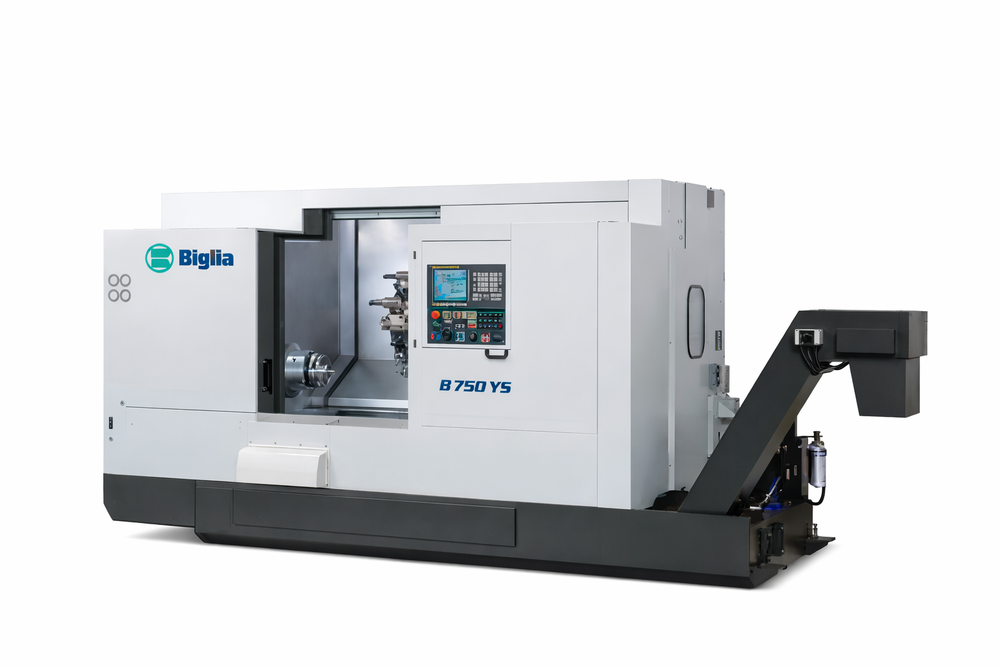

CNC Lathe BIGLIA B750 YS



TECHNICAL CHARACTERISTICS:

Year of manufacturing: 2015
CNC control: FANUC series 32i-B
Max. turning diameter in rotation: 680 [mm]
Stroke X axis: 305 [mm]
Stroke Y axis: 140
Stroke Z axis: 860 [mm]
Rapid traverse rate X axis: 18000 [mm/min]
Rapid traverse rate Z axis: 24000 [mm/min]
Rapid traverse rate Y axis: 7500 [mm/min]
Spindle nose: ASA 8"
Max. bar diameter: 80 [mm]
Spindle throughbore: 91 [mm]
Max. spindle speed: 3500 [rpm]
Increment C-axis: 0.001 [°]
Spindle power: 22 [kW]
Spindle torque: 700 [Nm]
Counter spindle nose: ASA 5"
Counter spindle throughbore: 55 [mm]
Counter spindle stroke: 895 [mm]
Max. counter spindle speed: 5000 [rpm]
Counter spindle increment C-axis: 0.001 [°]
Counter spindle power: 25 [kW]
Counter spindle torque: 159 [Nm]
Max. tool holder cross-section: 25 x 25 [mm]
Number of tool stations: 16
Turret indexing time: 0.3 [s/pos]
Number of tool stations driven: 16
Max. speed driven tools: 6000 [rpm]
Live tools power: 17.5 [kW]
Lubrication tank capacity: 300 [l]
Collant pump flow rate: 60 [l/min]
Rated current: 60 [A]
Supply voltage: 400 [V]
Dimensions: 5070 x 2030 x 2220 [mm]
Weight: 7600 [Kg]


INCLUDED EQUIPMENT:

x1 three-jaw chuck Ø250 mm
x1 three-jaw chuck Ø165 mm
x2 live axial tool holders
x1 live radial tool holder
x8 static tool holders
x1 high-pressure coolant pump (20 bar)
x1 chip conveyor
x1 RENISHAW tool probe
x1 parts catcher
x1 parts conveyor belt
x1 LNS bar feeder, Quick Load Servo III type



Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.
