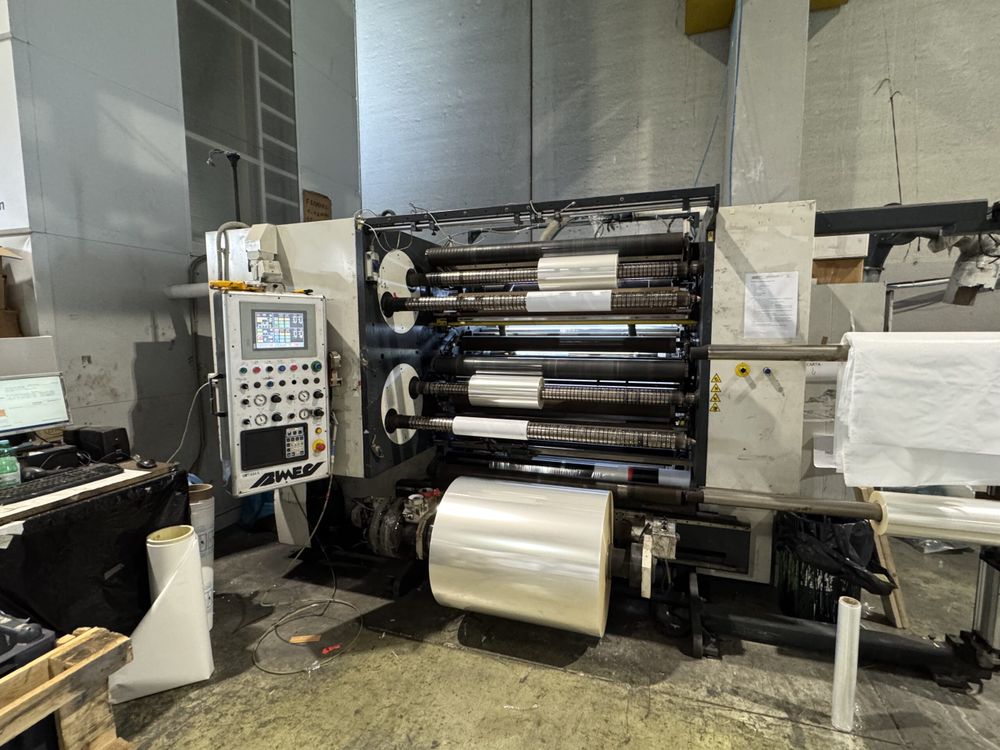

Bimec SMT/434 CUTTER – S

1.04 Typology Twin camshaft with automatic turret gearbox
1.05 Inlet diameter 800 mm
1.06 Outlet diameter 320 mm
1.07 Trim system SI
1.08 Maximum coil width 1300 mm
1.09 Mechanical speed (m/min) 500 m / min
1.10 Power supply 3 x 400V, 50Hz
1.13 Cutting group Helios circular knives
1.14 Compressed air supply Max 6-8 bar
1.15 Material Paper, plastic films and laminates
1.17 Web guides Yes
1.18 Unloading coils With unloading turret
1.19 Max cutting bands 1200 mm
1.20 Min cutting bands 30 mm
1.21 Accessories Vacuums trims
1.21 Availability Immediate
1.22 More information Turret switch cutter
