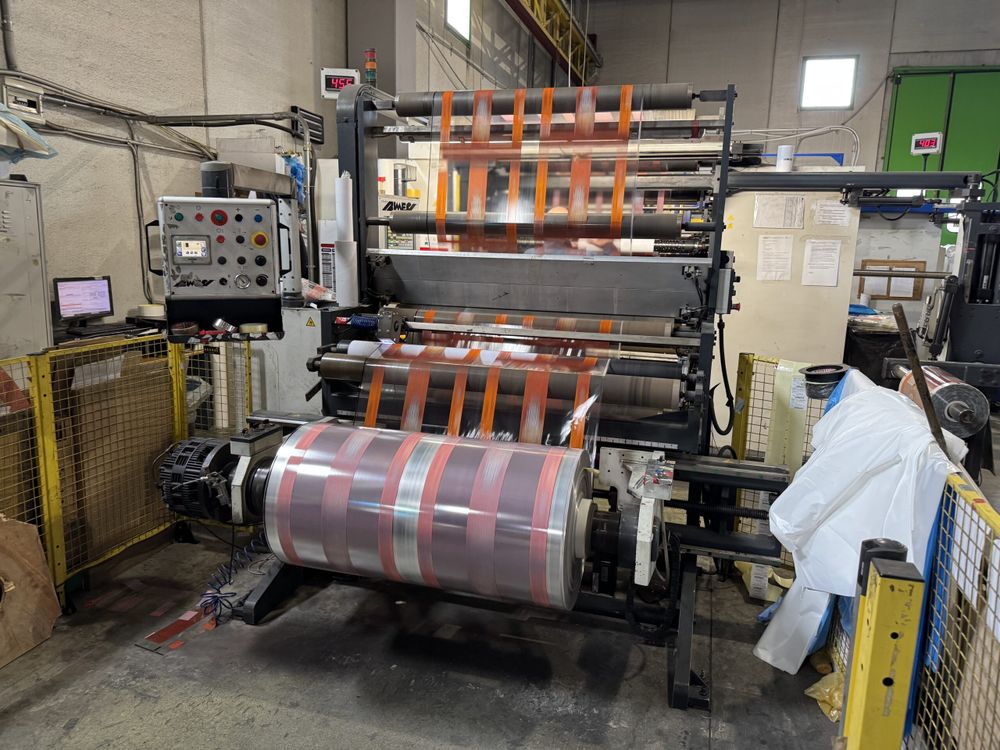

Bimec TCA 64 E 1350 mm

1.04 Typology Twin camshaft with automatic turret gearbox
1.05 Unwinder diameter 800 mm
1.06 Minimum winding width 200 mm
1.07 Trim system Yes
1.08 Maximum coil width 1350 mm
1.09 Mechanical speed (m/min) 600 m / min
1.10 Power supply 400 V – 50 Hz
1.13 Cutting group Helios circular knives
1.14 Compressed air supply Max 6-8 bar
1.15 Material Paper, plastic films and laminates
1.16 Web guides Yes bst
1.17 Unloading coils With automatic turret
1.18 Max cutting bands 1200 mm
1.19 Min cutting bands 40 mm
1.20 Accessories supplied Vacuums trims
1.21 Availability Immediate
1.22 Further information Cutter with automatic unloading and turret change
