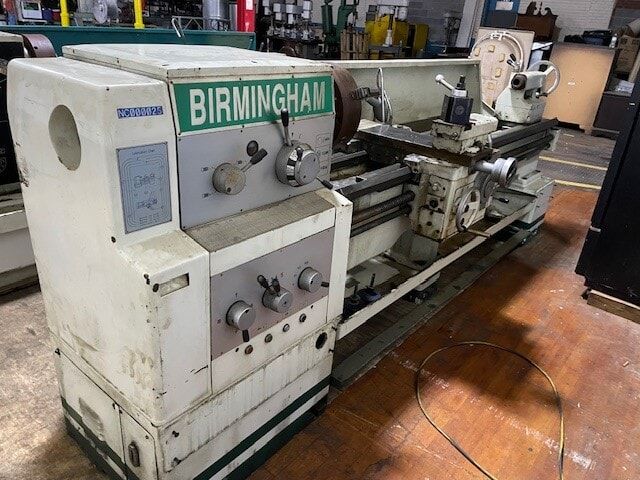

Birmingham Engine Lathe 1600 RPM (16 steps) DL-2200

Birmingham DL-2200
2002

Swing over bed 22"
Swing over cross slide 13"
Swing in removable gap 32"
Length of gap 10.25"
Distance between centers 80"
Cross slide travel 13.75"
Spindle speeds 16 to 1600 RPM (16 steps)
Spindle bore 3.1875"
Spindle nose D1-8 Camlock
Inch thread range 7/16 to 80 TPI (49 threads)
Metric thread range 0.5 to 80 mm (37 threads)
Longitudinal feeds 0.0015 to 0.0772 IPR (54 feeds)
Cross feeds 0.0006 to 0.0303 IPR (54 feeds)
Longitudinal rapid traverse 4 m/min
Cross rapid traverse 1.15 m/min
Tailstock taper #5 MT
3-jaw universal chuck 12" with 2-piece reversible hard top jaws
Taper attachment
Threading dial
Coolant system
Full-length rear splash guard
Foot brake
Operator's manual
Main motor 10 HP, 3 phase, 60 Hz, 230/460V (wired for 460V)
Coolant motor 1/8 HP
Rapid traverse motor 1/3 HP
Floor space 144" x 48" x 56"
Machine weight approx. 5754 lbs
