BL 100 Log cabin milling machine

Log cabin milling machine Auertech BL 100

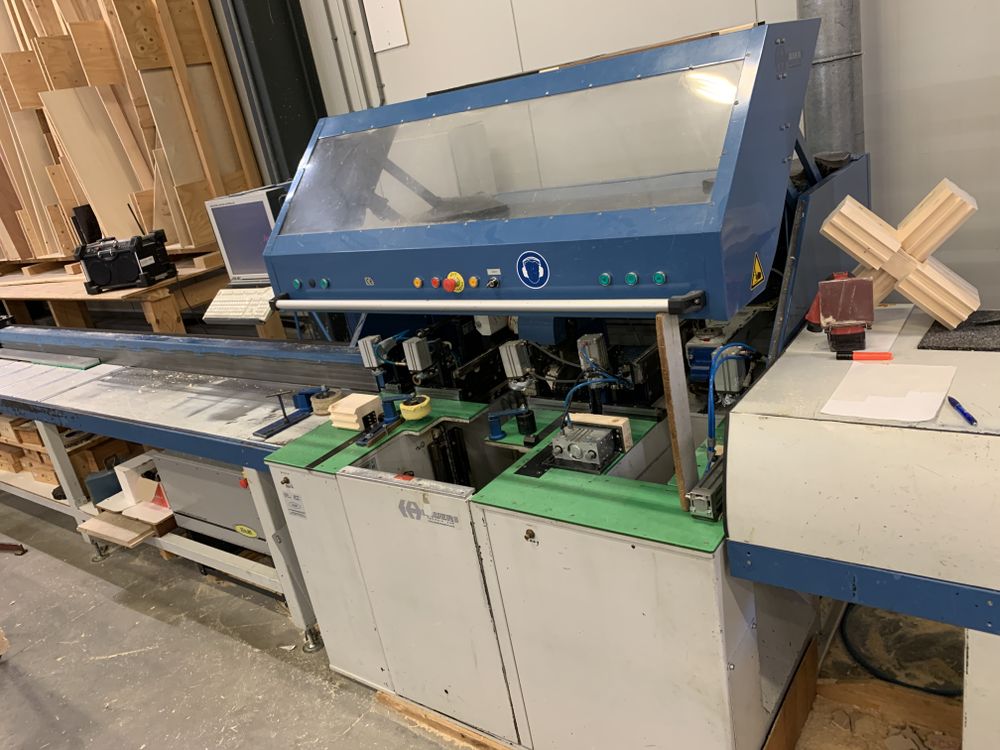

Log House Milling Machine BL100A - Quadruple Unit
For creating chalet corner joints by milling grooves on all four sides of the log in a single setup using 2 vertical and 2 horizontal milling shafts.

Cutting dimensions 140 x 200 mm
Mill shaft diameter 30 mm
Cutter diameter x width max. 4 x 220 x 100 mm
Motor power 4 x 3.0 kW
Speed ​​4,200 rpm
Hydropneumatic feed, infinitely variable with rapid traverse!

Operation: Two-hand control / via control unit
Mill depth adjustment via spindle, digital counter!
Workpiece clamping device: 2 x vertical pneumatic
Dust extraction: Underfloor funnel Ø 160 mm
Complete with electrical components, PLC control, and pneumatics.
Machine stand with pre-installed mounting points for a face milling and drilling unit, as well as a miter saw.
Enclosed machine enclosure with a hinged protective hood (gas spring operated) and viewing window.
Electrical control cabinet on a plinth with a 3.0 m cable conduit. - Ready for operation, but without tools!

Two horizontal clamps in the BL100 machine table
Pneumatically operated from the front
Automatic clamping cycle via PLC control.

Face milling unit
Milling shafts Ø 30 mm
Cutter Ø x width max. 180 x 40 mm
Motor power 3.0 kW
Speed ​​4,200 rpm
Hydropneumatic feed, infinitely variable with rapid traverse!
Spindle height adjustment, digital counter!
Workpiece clamping device with one additional vertical pneumatic clamp
Integrated into the BL100. With electrical and pneumatic components. Ready for operation, but without cutters!

Horizontal drilling unit with drill guide and splinter guard
Max. drill diameter 30 mm
Motor power 1.1 kW
Speed ​​1500 rpm
Pneumatic feed, infinitely variable with rapid traverse for idle stroke
Spindle height adjustment, digital counter
Workpiece clamping device with one additional vertical pneumatic clamp
Integrated into the BL100. With electrical and pneumatic components. Ready for operation, with 20 mm drill bit!

Under-table miter saw in BL100A For automatic operation only!

Maximum cutting dimensions (W x H): 200 x 140 mm
Saw blade diameter: 500 mm
Motor power: 4.0 kW
Cutting speed: 86 m/s
Pneumatic feed
Operation: Automatic program control only (not included)
Pneumatic workpiece clamping device
Extraction funnel diameter: 120 mm
Integrated into the BL100A. Electrical and pneumatic components included - ready to operate, saw blade included!

Prepared for automatic operation
Consisting of the sliding table (mechanical, pneumatic, and electrical components)
for the end mill and the electrical interface for controlling the BL100A functions via the external Tigerstop controller.

Infeed table length: 9 m
Outfeed table length: 4 m
