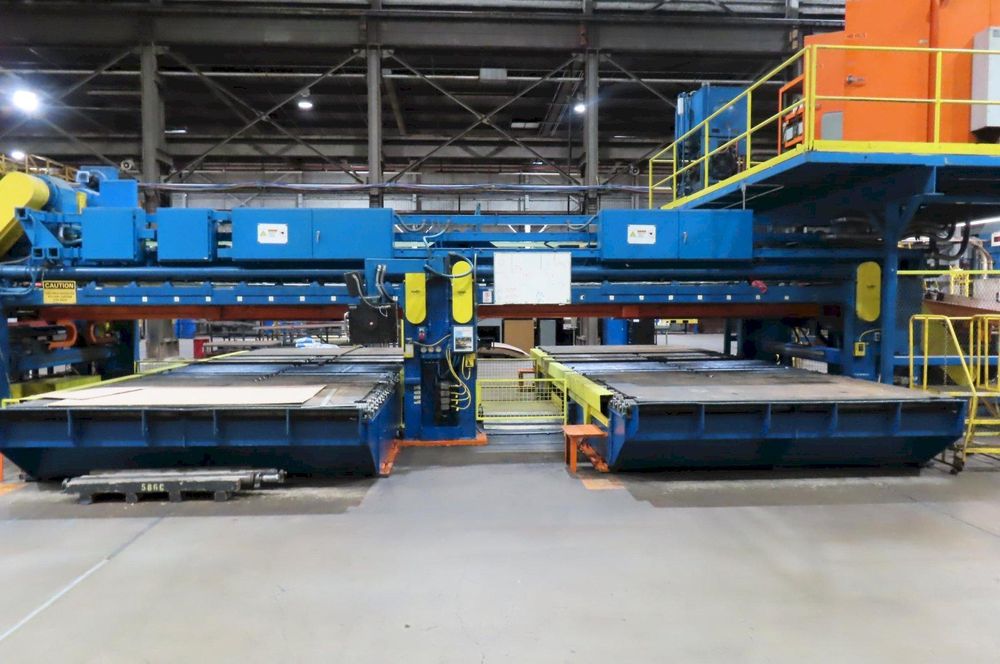

Blanking Line 800 Ton

800 Ton Blanking Line
Class A Blanking Line

AUTOMATIC FEED COMPANY BLANKING LINE / 2 STATION STACKING SYSTEM
Max Coil Width: 72”
Max Coil Weight: 75,000#
Coil ID: 20”-24” (if pads are removed)
Thickness Range: .024”-.110”
Blank Length Range: 18”-120”
Max Stack Weight: 20,000#
Max Stack Height with Pallet: 25”

With the Following Components:
Coil Holders
Floor Standing Coil Car
Dual Mandrel Uncoiler
Peeler with Hold Down Roll
Entry Crop Shear
6HI Leveler
Pinch Roll Stand
Pit with Cascade Rolls
Servo Feeder
