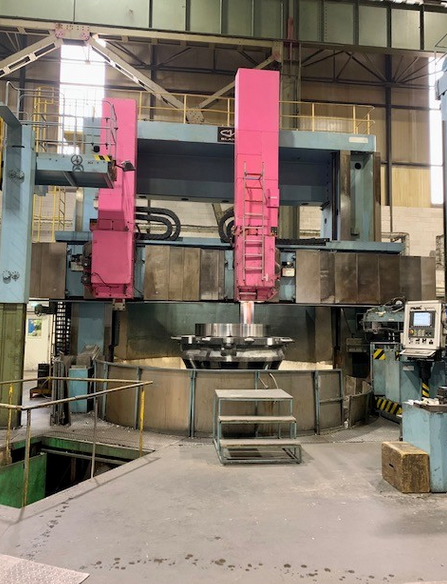

Blansko, CKD SKD 50 CNC Swing diameter 5300 mm
Ref :
2741680-3-MT
Condition :
Used
Manufacturer :
Blansko, CKD
Model :
SKD 50 CNC
Short Description :
Swing diameter 5300 mm
Year(s) :
1992
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Retrofit 2011
Z axis (RAM) travel 1950 mm
Crossbeam travel 3600 mm
Crossbeam adjustment speed 500 mm/min
Control SINUMERIK 840D SL
Table diameter 4770 mm
Swing diameter 5300 mm
Turning height 4000 mm
Max turning height without tool 4130 mm
Table load capacity 100 t
Pick-up magazine 8 tool holder positions
Automatic clamping of tool holder in ram
Straight boring head
Angle head 90 (not in pick-up)
Machine weight approx. 110 t
Equipped With:
Drilling unit
Milling unit
Grinding unit
