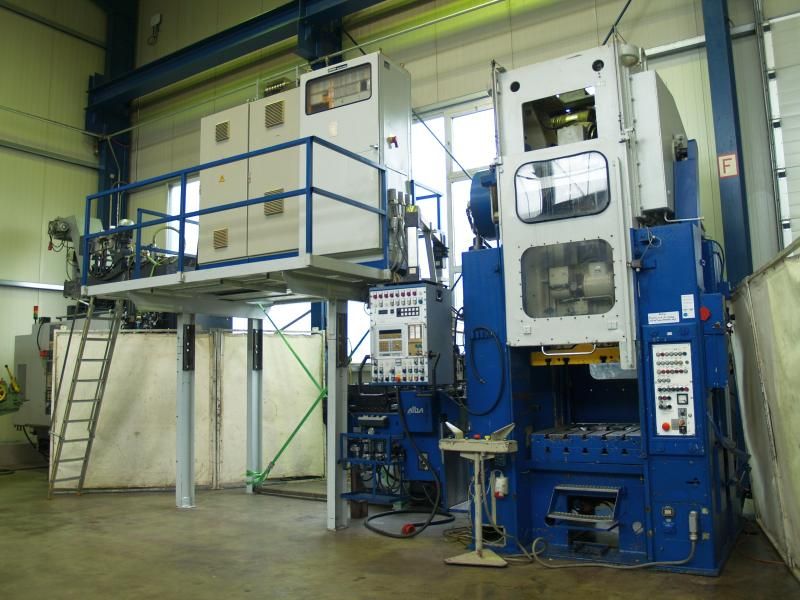

Blema Gotha PEZ 160-50 MHSY-ES 160 ton

Pressing force 160 ton
Frame gap 970 mm
Lateral frame gap 560 mm
Table size 900 × 900 mm
Ram area 900 × 700 mm
Die installation height 560 mm (max. 700 mm)
Stroke adjustment 8–160 mm
Ram adjustment stroke 125 mm
Strokes per minute 25–70
Strip width in roll feed max. 400 mm
Motor power approx. 15 kW
Power supply 380 V, 50 Hz
Infinitely variable stroke rate via frequency control
Automatic stroke adjustment
Ram weight compensation cylinder with compressed air
Hydraulic overload protection in ram
Pneumatic clutch-brake combination
Oil central lubrication
Precisely guided press ram with oil-lubricated guides
Press control UNIDOR
Swiveling control panel
Control cabinets of press and feeder on joint platform
Platform size 3400 × 2250 mm, height without feet 2950 mm
Press width without feeder 2100 mm
Press depth with drive motor 2300 mm
Press total height 4150 mm
Press weight approx. 18 ton
Drive motor removed for transport
Machine laid down for transport
NC roll-feed straightening machine ALBA GGVHY400 (1992)
Feed control ALBA PSS 300
Feed length steplessly programmable 0.1–6500 mm per stroke
Strip thickness at 400 mm width max. 3 mm
Strip thickness at 300 mm width max. 4 mm
Max. strip cross-section 1200 mm²
Feed roll drive hydraulically controlled
Height-adjustable feed unit on press
Hydraulic unit beside machine
Pull-through straightening unit with hydraulic open/close
Total system weight approx. 24 ton
Transport requires mega-trailer (3 m internal height, 13.6 m loading length)
Good condition
