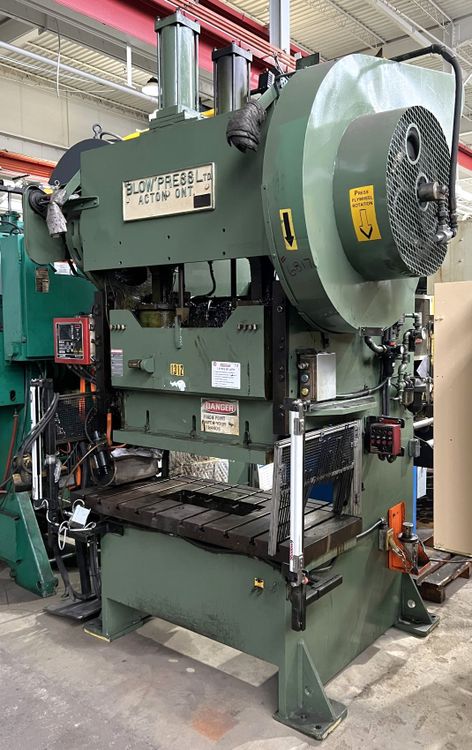

Blow 60T Press 60 TONS

Blow 60T Press

CAPACITY 60 TONS
STROKE APPROX. 3″
MAX. SHUT HEIGHT TO BED 15″
RAM ADJUSTMENT approx. 3.5″
BED AREA 60″ X 18″ (RL X FB)
BOLSTER PLATE 62″ X 27″ (RL X FB) X 3″ THICK
RAM AREA 42″ X 18″ (RL X FB)
SPEED approx. 110 spm
DISTANCE BETWEEN UPRIGHTS 48″
FLOOR TO BED HEIGHT 31″
THROAT DEPTH 10″

AIR CLUTCH BLOW AIR CLUTCH AND BRAKE ASSEMBLY
PRESS CONTROLS SMARTPAC WINTRISS PRESS AUTOMATION CONTROLLER
ELECTRIC MOTOR Likely 575V but not confirmed
APPROX. DIMENSIONS 100″ X 75″ (RL X FB) X 135″ HIGH
APPROX. WEIGHT APPROX. 14,000 LBS.
