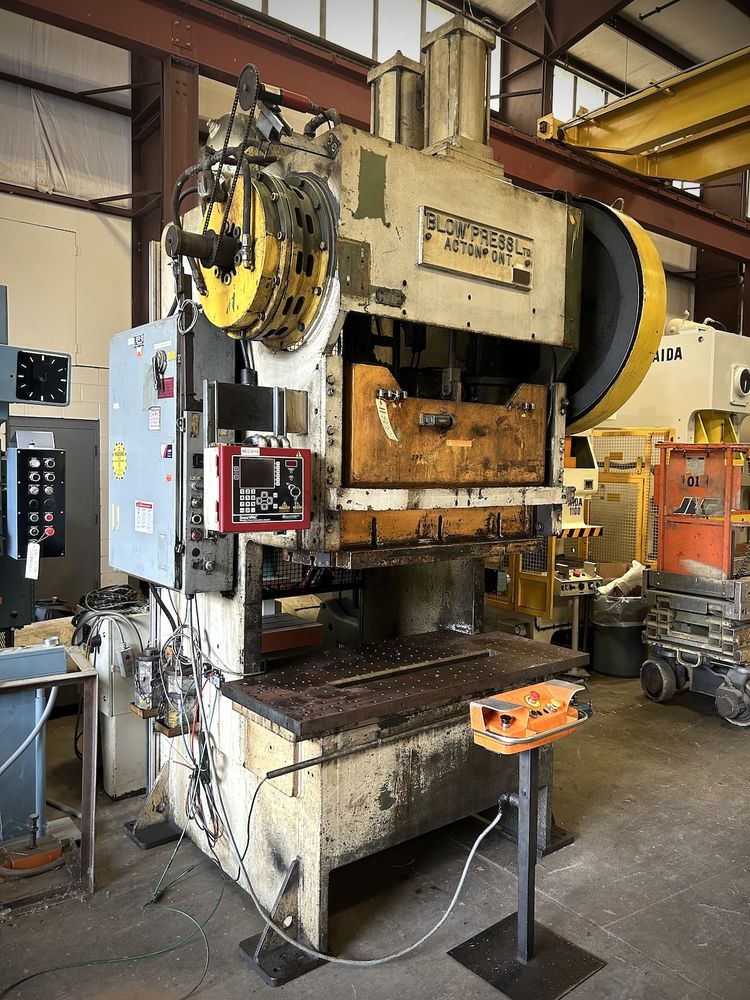

Blow GD60 Press 60 TONS

Blow GD60 Press
Year: 1982

CAPACITY 60 TONS
STROKE 6″
MAX DIE HEIGHT 21″ sdau over 1.875″ h bolster
BED AREA 60″ x 18″ (rl x fb)
SPEED APPROX. 110 SPM
SLIDE ADJUSTMENT 3.5″ motorized
SLIDE AREA 47″ rl x 18″ fb (t-slot)
BOLSTER PLATE 1.875″ h x 62″ rl x 22″ fb
DISTANCE BETWEEN UPRIGHTS 48″
DISTANCE FLOOR TO BED 35″
CLUTCH Wichita air clutch & brake
PRESS CONTROLS Existing wintriss wpc press control
ELECTRIC MOTOR 10 hp 1150 rpm 575v-3-60 motor (can rewind OR REPLACE WITH 208-240/480v for RECOND PRICE)
APPROX DIMENSIONS 134″ h x 90″ rl x 72″ fb
APPROX WEIGHT 17,000 lbs

Equipped With
dual air counterbalances, floor standing, direct drive, steel fabricated
heavily reinforced frame, replaceable phenolite liners on slide ways
bronze bushed crank bearings, bronze lined ball seat connections
motorized slide adjustment
