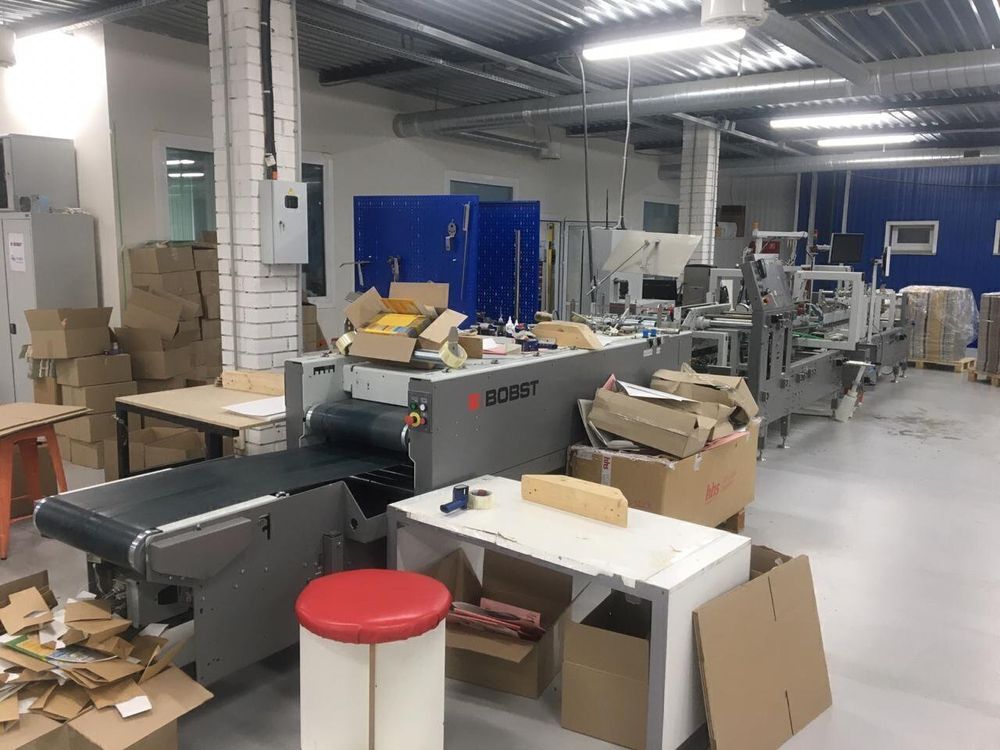

Bobst AMBITION 76 A1

Ref : 2728963-4-AW
Condition : Used
Manufacturer : Bobst
Model : AMBITION 76 A1
Year(s) : 2020
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

CUBE adjusting system
Carton board: max 800 g/m2
Corrugated flute type: N, E, F
Speed: 20 to 300 m/min
Inching speed: 20 m/min
Box sizes:
Straight line "C": 126 to 760 mm
Straight line "E": 60 to 800 mm
Straight line "L": 60 to 385
Crash-lock bottom "C" (2): 146 to 760 mm
Crash-lock bottom "L": 70 to 385 mm

FEEDER :
Total length: 610 mm
6 Feed conveyors with 30 mm wide belt with 4 built-in mechanical vibrators
1 Thickness gauge with lateral and lengthwise setting and upper introduction rollers
1 Additional thickness gauge with lateral and lengthwise setting and upper introduction rollers
2 Side guides in two parts
Asymmetrical and adjustable in length
Max. pile height: 350 mm.
1 set of rear guides for blank support
1 Motor controlled by frequency variator to drive the feed belts and to put in or out of operation

PREBREAKER SECTION :
Total length: 2300 mm.
1 lower left conveyor with 43 mm wide belt
1 Lower right conveyor with 25 mm wide belt
1 Set of upper conveyors with 25 mm wide belts and lifting device
1 Left-hand prebreaker without belt with built-in pressing device
Adjustable through eccentric
Max. width of the glue flap: 30 mm
1 Reopening guide
1 Right-hand prebreaker with 30 mm belt width
Including a system to set the prebreaking angle
1 Lower central supporting guide

GLUING UNIT:
1 Lower left-hand gluing unit with wheel and double scraper
1 HHS gluing system with 2 nozzles, upgradeable up to 4
1 Removable glue basin
1 Upper guide with pressure roller
1 Refill bottle

Additional options installed (with factory no.):
A-012 Delivery, extended version
B-012 Device for CRASH-LOCK BOTTOM boxes without prebreaking of 3rd crease
B-060 Device for sleeves and envelopes
EA-015 Electric pile vibrator
For the rear pile guides. Improves the feeding of blanks which are sticking to each other
EA-025 Blank suction device
EA-030 Rotary brushes
F-020 Long upper right conveyor outlet
G-001 Minimum folding device
G-015 Central conveyors
J-001 Infeed device left and right Infeed device with 30 mm belt width
J-010 Upper pressure belt
J-014 Additional upper pressing belt
DX-027 Glue application system without possibility of quality assurance (maximum machine speed 300 m/min)
K-012 Flipper ejector
KX-012 Code reader "Stand-Alone"
Xtend series Baumerhhs (maximum machine speed 700 m/min)
Dismantled
In stock
